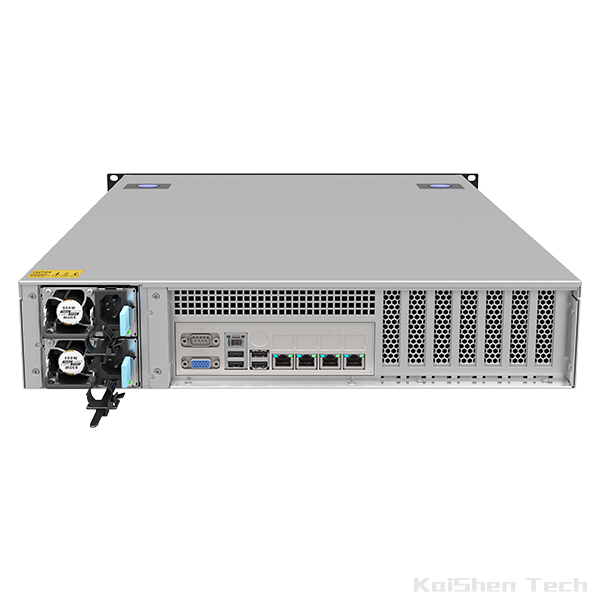

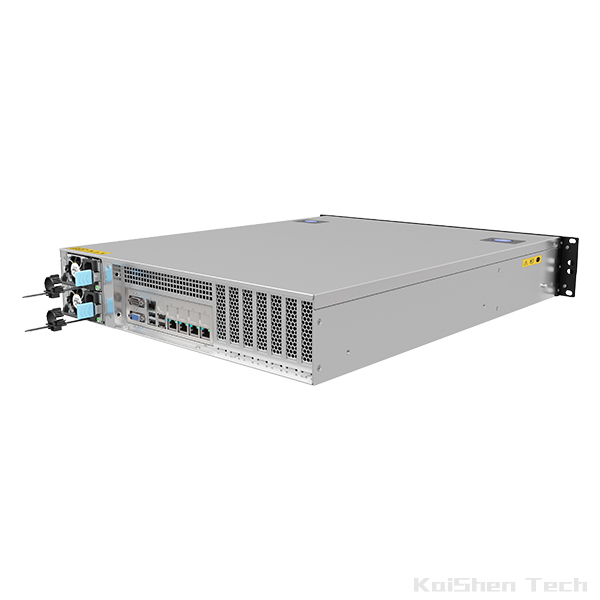

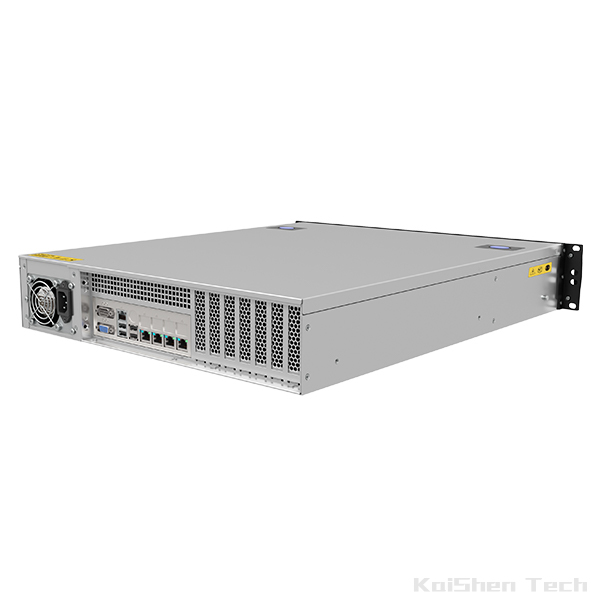

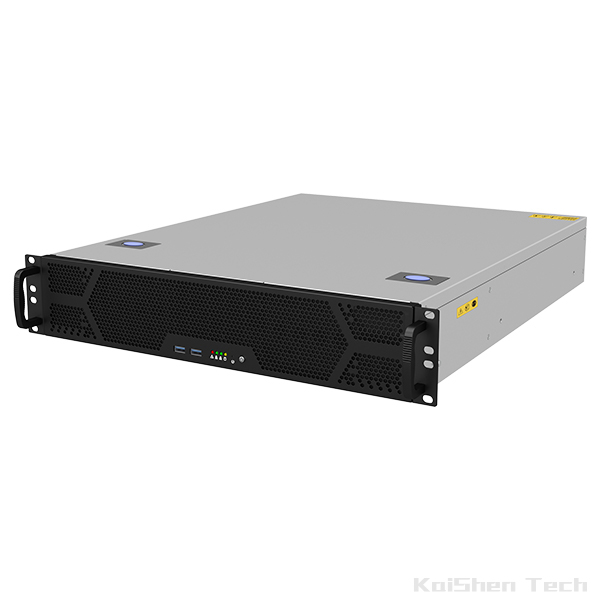

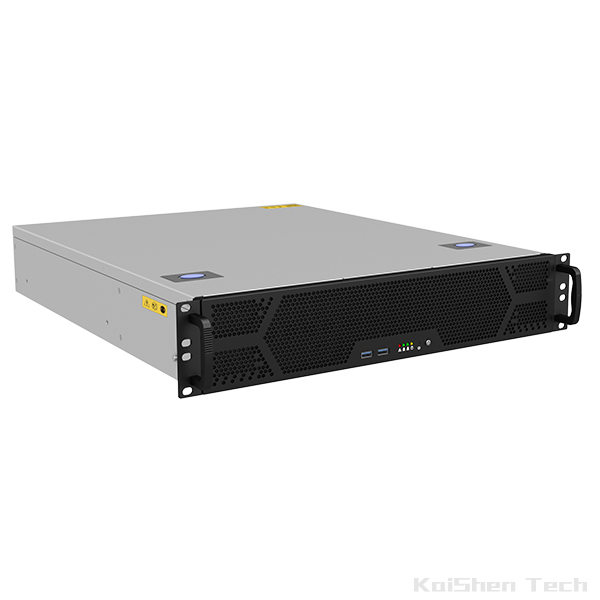

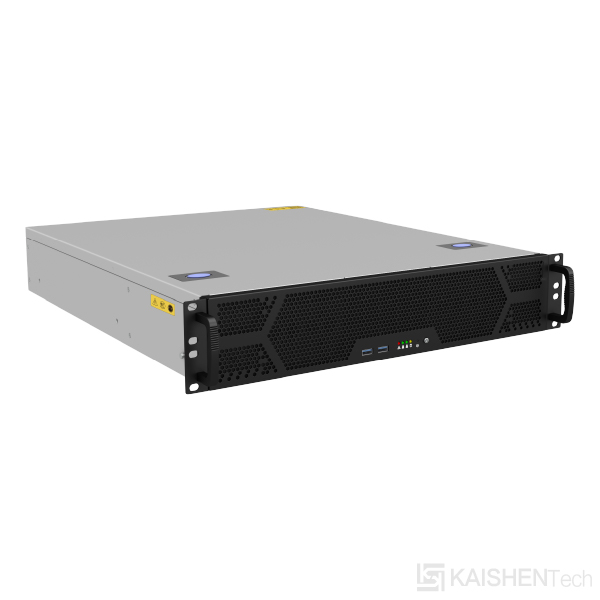

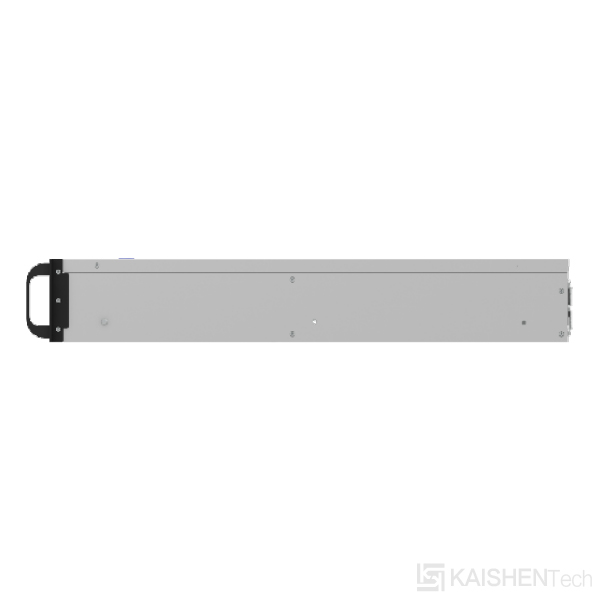

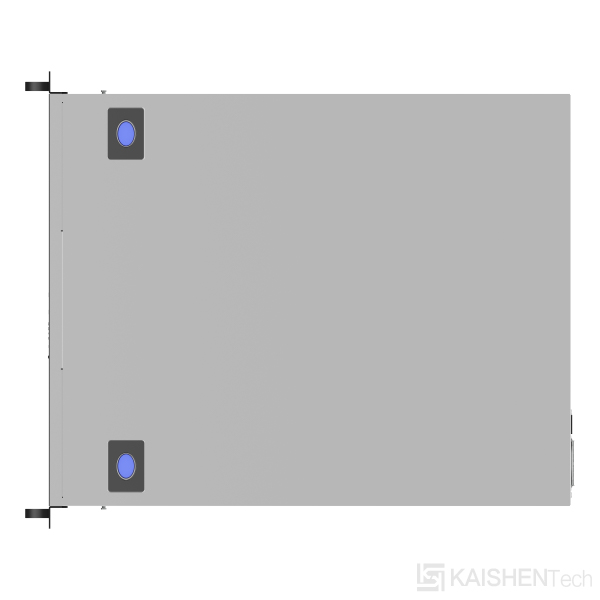

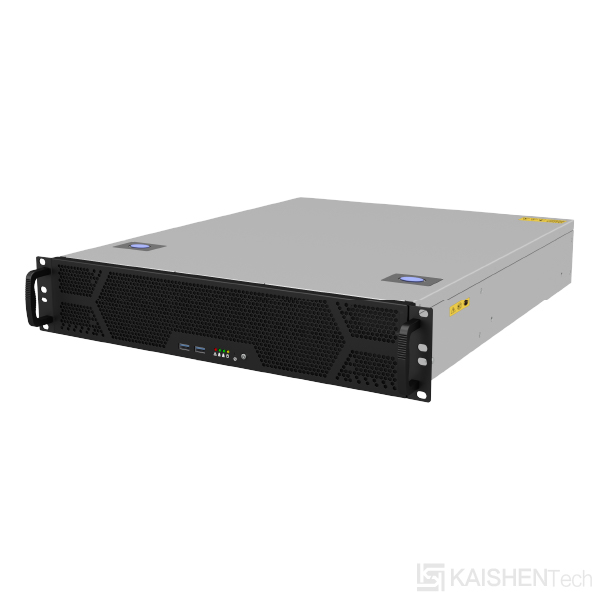

2U No Bay Server Chassis

Product code	K12001	K12003
Chassis Category	2U Rack mount
Material	1.2mm SGCC(taiwan)
MB Form Factor	Extended ATX (12" x 13")

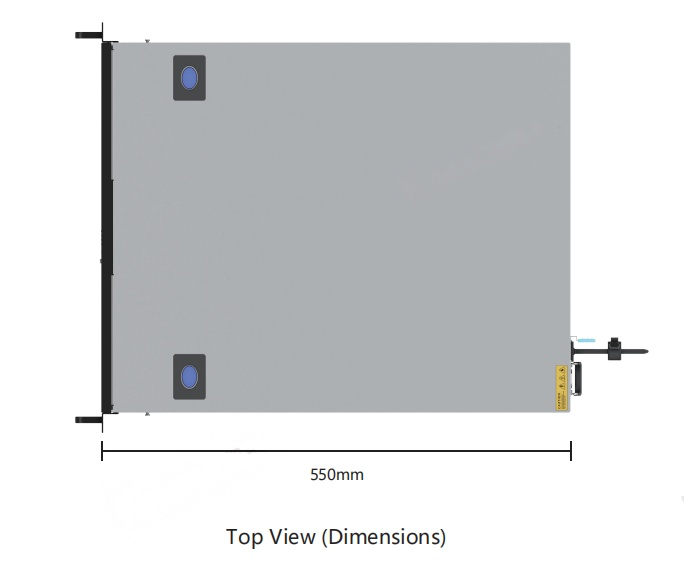

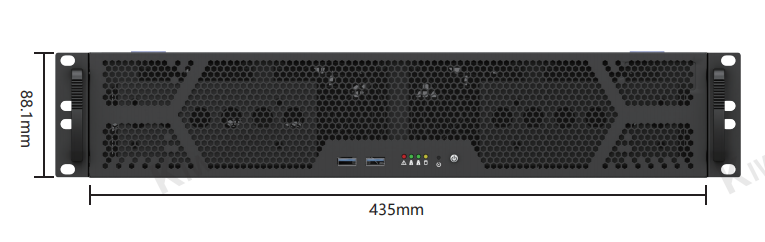

Dimensions (D* W*H)	550 * 435 * 88.1(mm) 21.65”x 17.12"x 3.47 ”
Drive Bays	lnternal 3.5" : 4 lnternal 3.5" : 2 + 2.5” : 2

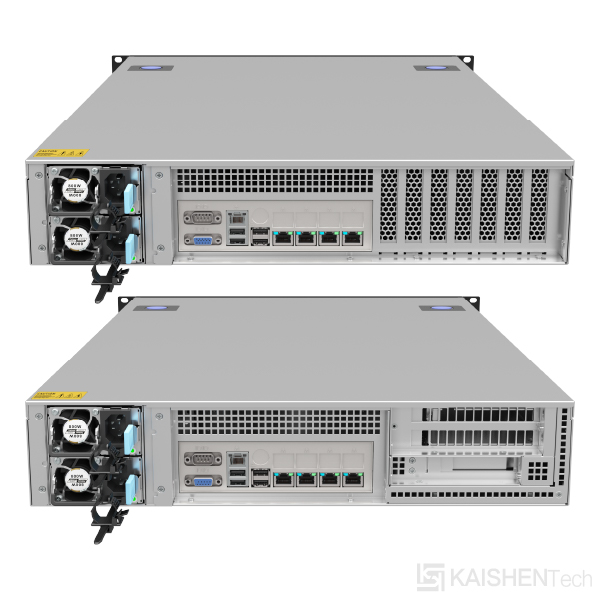

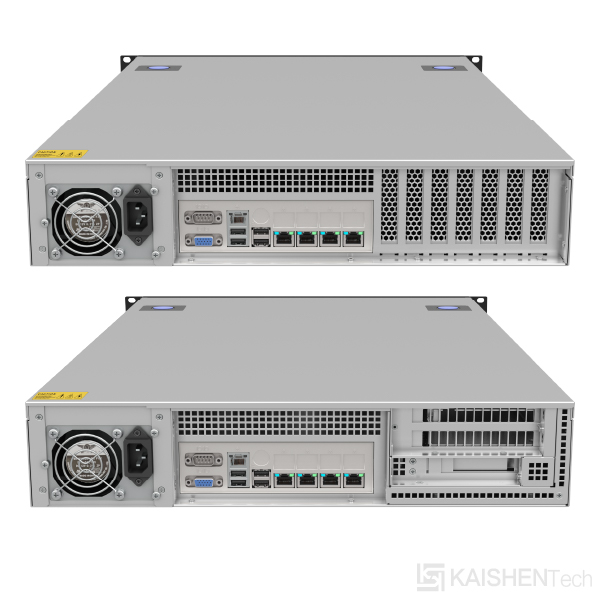

PSU Form Factor	2U Single or 1+1 Redundant
Indicators	1 * Power Status , 2 * LAN Activity, 1 * UID Status , 1 * HDD Status ，1 * Warning Status
Front Control	1 * Power On/0ff , 1 * System Reset, 1 * UID 2 * USB 2.0 , USB3.0 + VGA(Option)
Safety Device	No
Cooling Fans	Middle : 3 x 80mm (T=25mm) , PWM , 4500RPM	Middle : 2 x 80mm (T=38mm) , PWM , 7500RPM Middle : 1 x 80mm (T=25mm) , PWM , 4500RPM
Expansion Slots	Length or 7 x Low Profile	Supports 2nd PCIE, 3X Full Height
Riser card module	No	PCIE16x 3.0, PCIE16x 4.0(Option)
HDD Backplane	No
Rack Rails	P/N: 0304100005 (Option)
