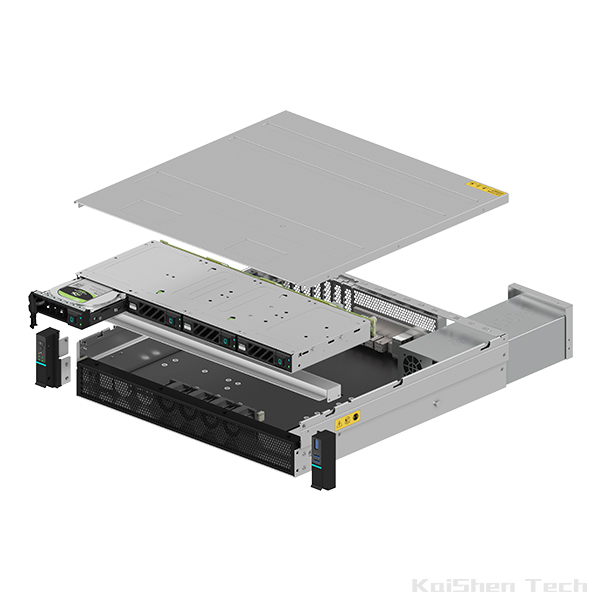

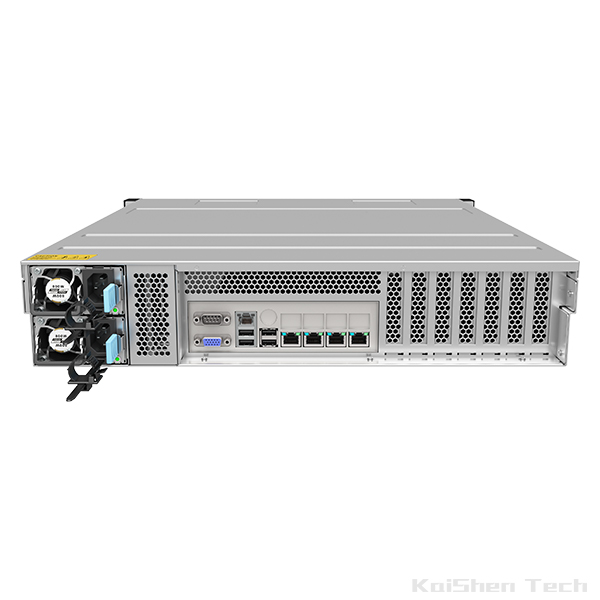

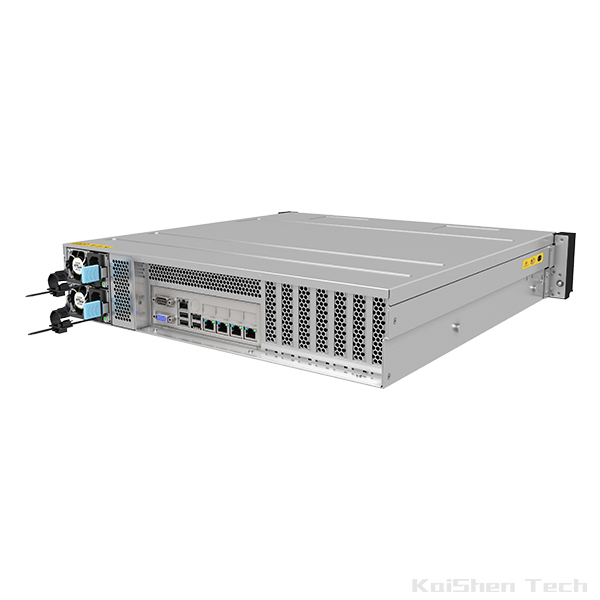

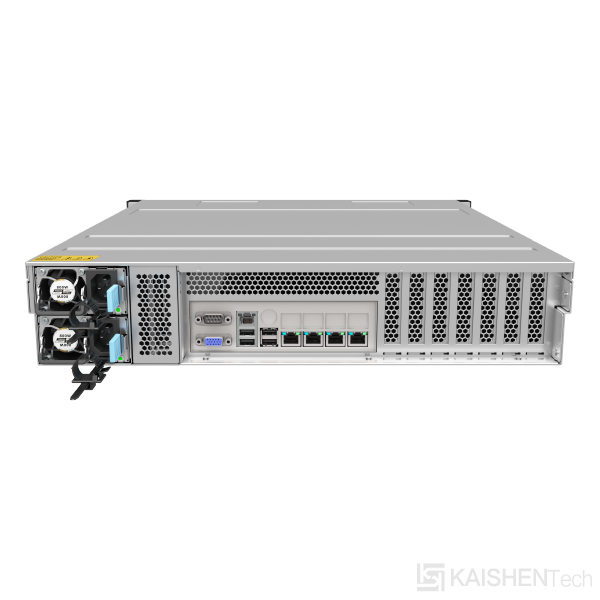

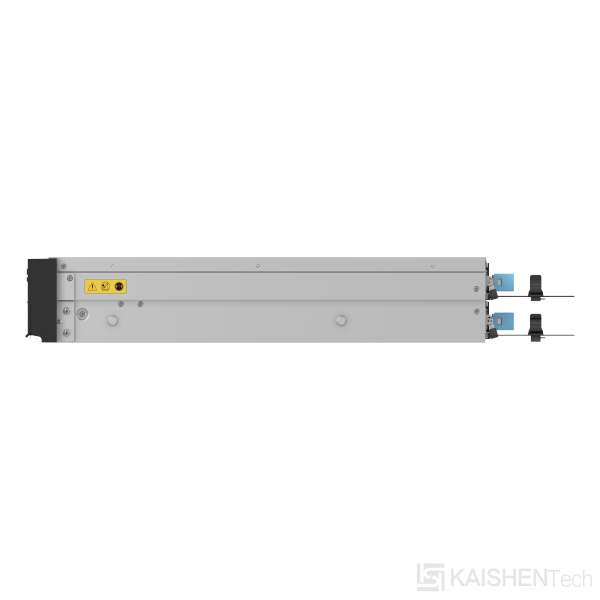

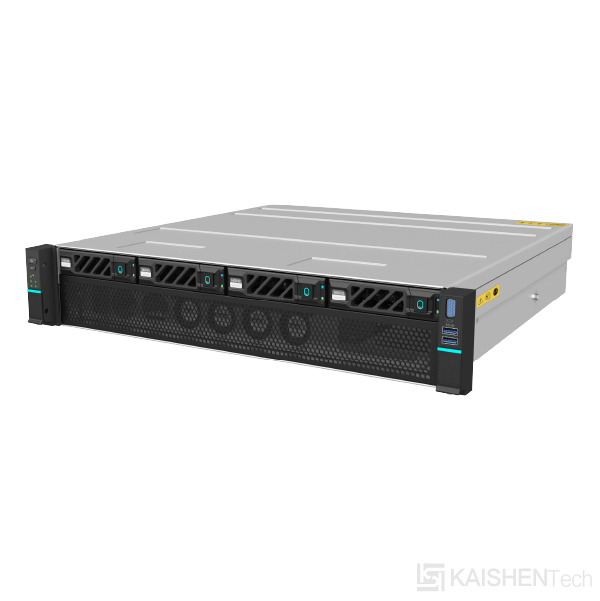

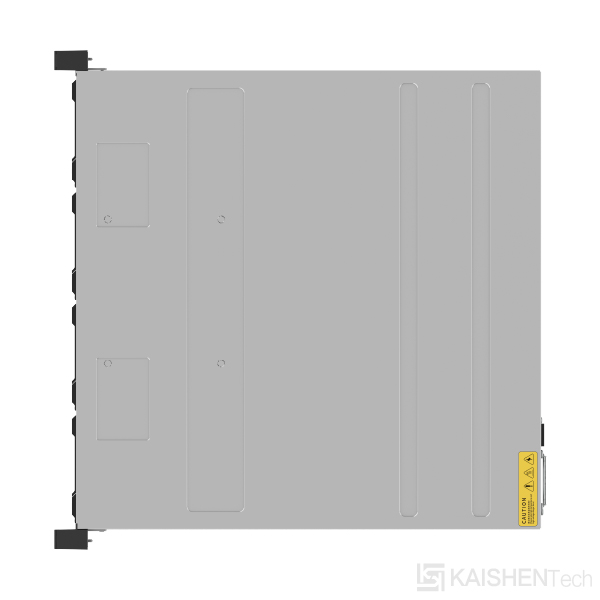

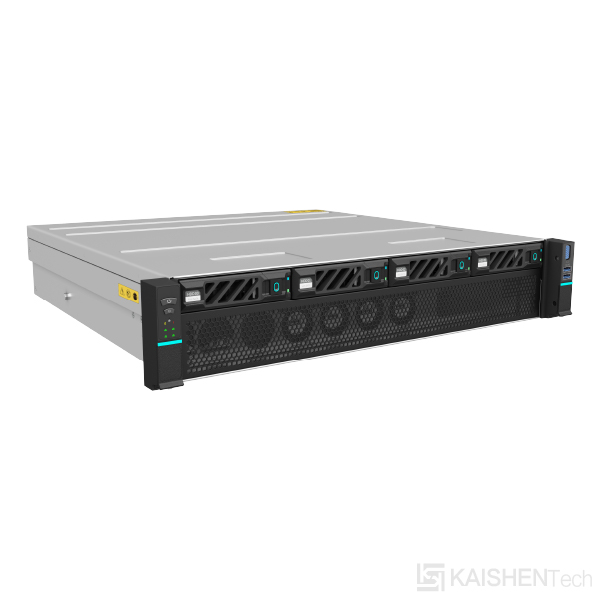

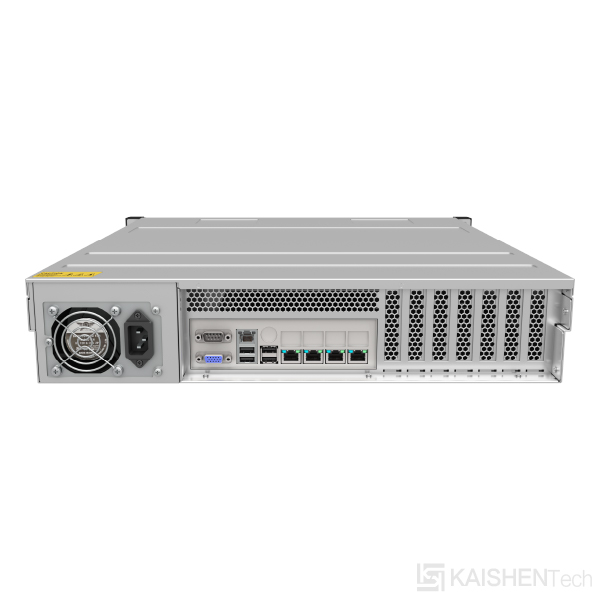

2U4 bays server chassis

Product Code	K32034												K32035
Chassis category	2U Rack mount
Material	SGCC1.2mm(Taiwan)
MB Form Factor	Extended ATX (12"x 13")

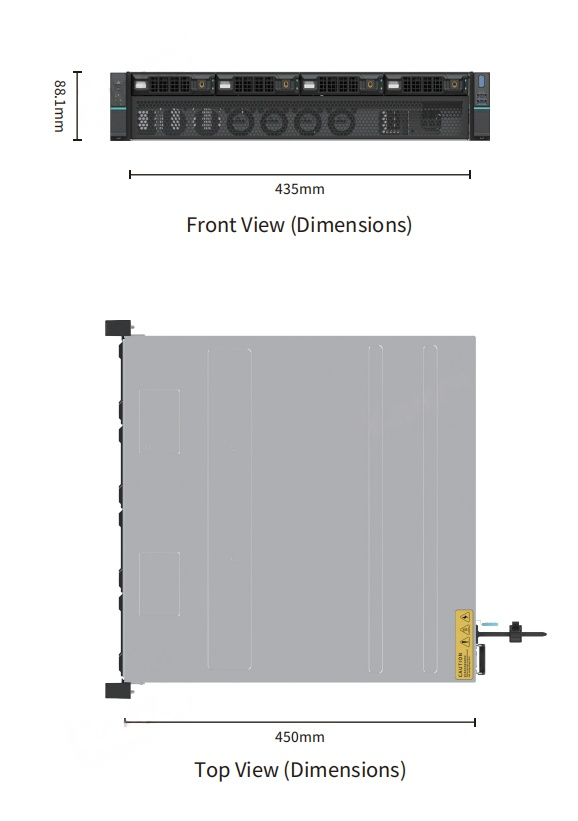

Dimensions (DWH)	450 * 435 * 88.1(mm) 17.72x 17.12"x 3.47 "
Drive Bays	3.5"Hot-swap: 4 ; lnternal 2.5": 2 2.5"Hot-swap (Option): 2
PSU Form Factor	2U Single or 1+1 Redundant
Indicators	1 * Power Status , 2 * LAN Activity, 1 * UID Status , 1 * HDD Status ，1 * Warning Status
Front Control	1 * Power on/off , 1 * System Reset, 1 * UID 2 * USB 2.0 , USB3.0 + VGA(Option)
Safety Device	Intrusion Switch (Option)
Cooling Fans	Middle : 4 x 40mm (T=28mm) , PWM , 15000RPM(Option)
Expansion Slots	Length or ; 7 x Low Profile
Riser card module	NO
HDD Backplane	1x 4 port 6b/s SAS backplane 1 x 4 port 12Gb/s SAS backplane(Option) 4-port three models(Option)

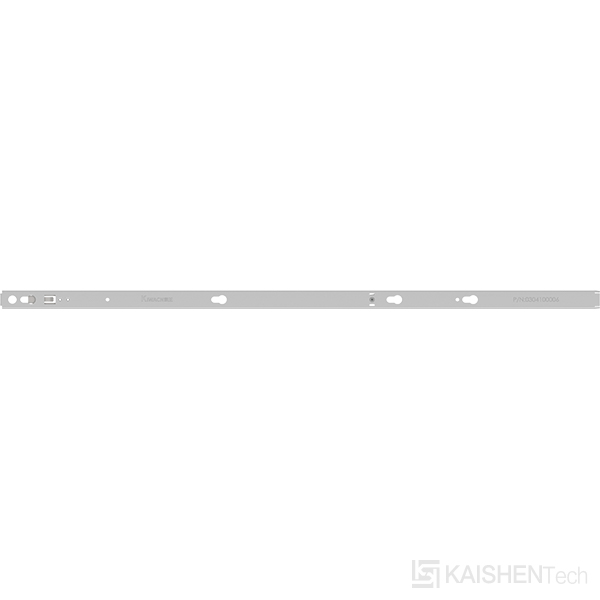

Rack rails	P/N:0304100006(Option)
Net Weight	7.02kg
Gross Weight	11.02kg
Package size(DWH)	Single: 620x605x195mm Double: 635x620x220mm (optional)
