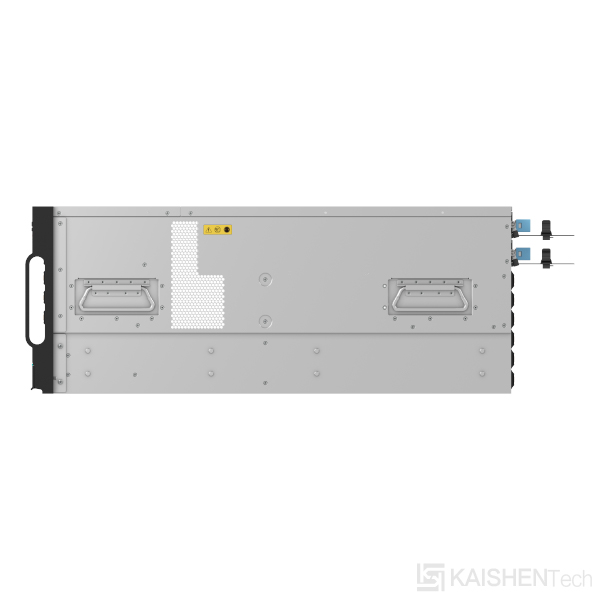

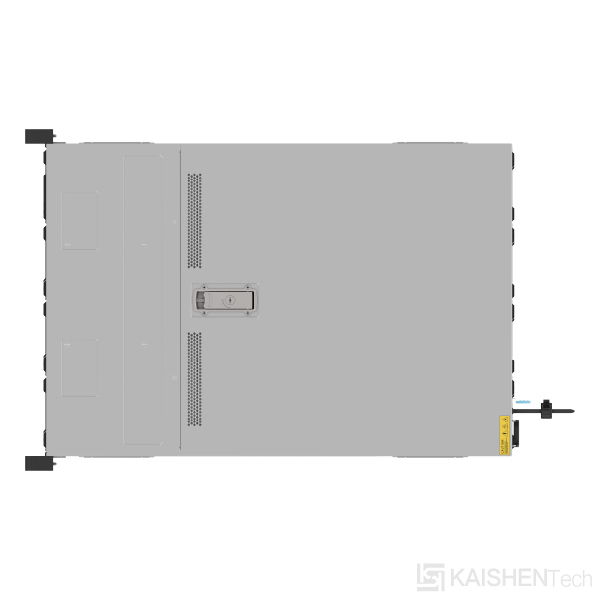

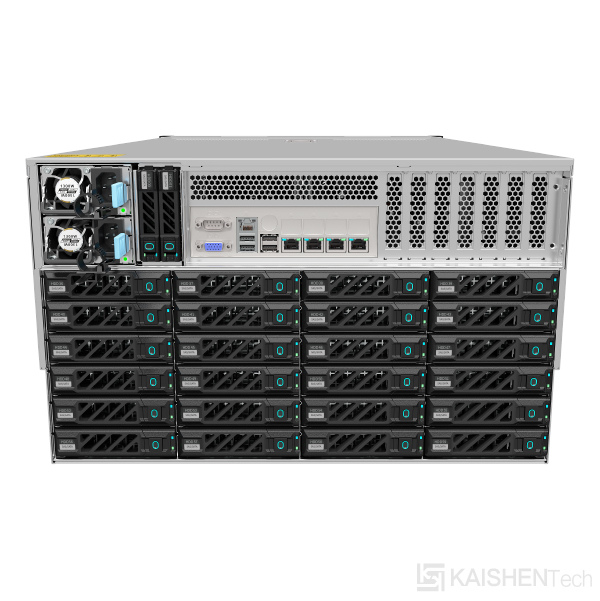

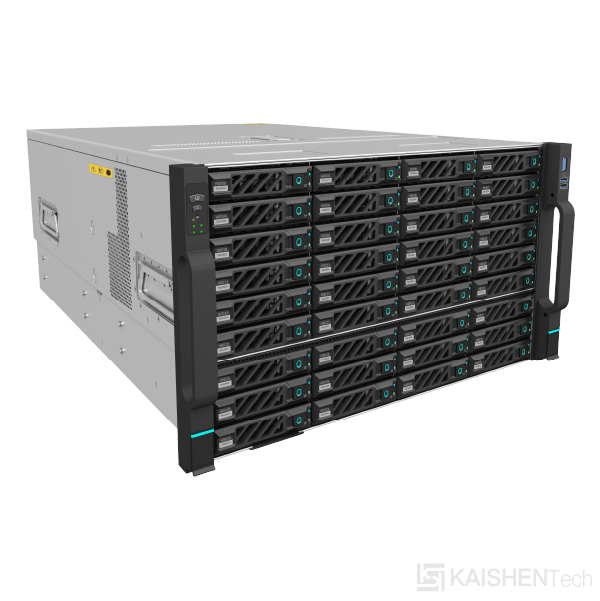

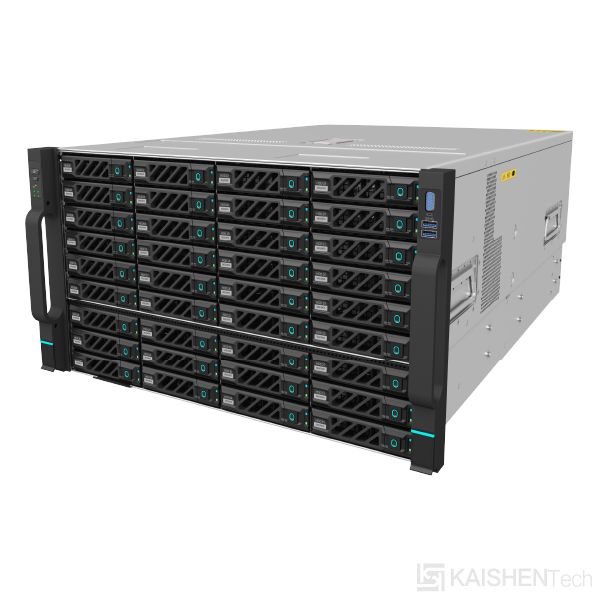

6u60 bays server chassis server case

6U rack-mount server chassis

12GB/S Expander backplane

Motherboard supports ≤12”x13”

Power supply supports 2U standard power supply and 1+1 redundant

Can be widely used in big data storage, Internet, cloud computing and other applications

Technical Parameter Dimensional Structure Download

Product Code	K36003
Chassis category	6U Rack mount
Material	SGCC1.2mm(Taiwan)
MB Form Factor	Extended ATX (12"x 13")

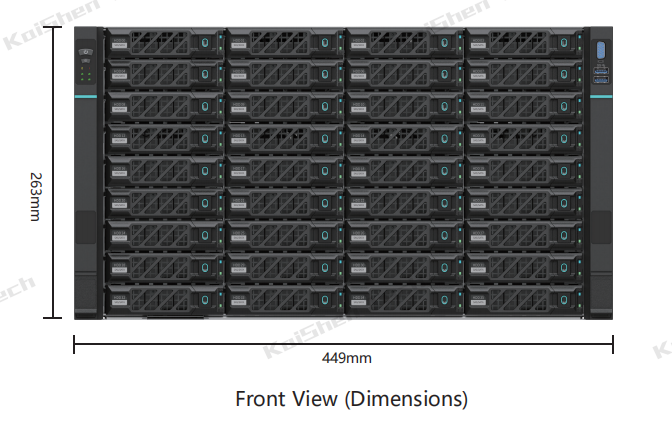

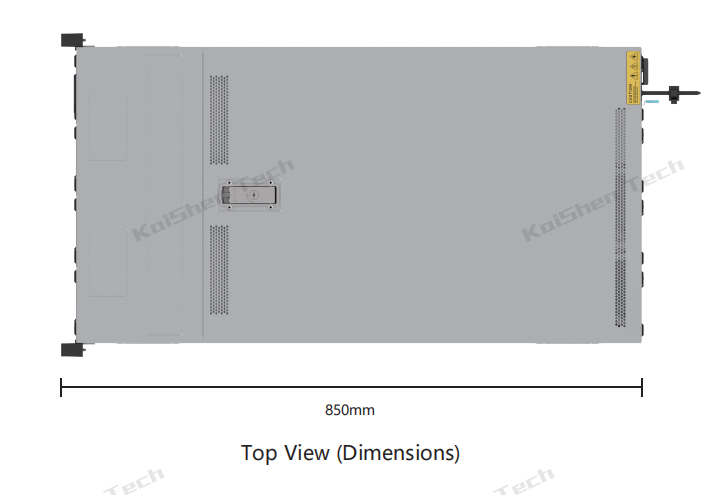

Dimensions (DWH)	660 * 435 * 266(mm) 25.98” x 17.13” x10.47”
Drive Bays	3.5"Hot-swap: 60 2.5"Hot-swap (Option): 2
PSU Form Factor	1+1 Redundant
Indicators	1 * Power Status , 2 * LAN Activity, 1 * UID Status , 1 * HDD Status ，1 * Warning Status
Front Control	Power On/Off, System Reset, 2 x USB 2.0
Safety Device	Intrusion Switch (Option)
Cooling Fans	Middle: 12 x 8038(7500PWM)
Expansion Slots	Length or 7 x Low Profile
HDD Backplane	24-port 12Gb/s Expander - SAS x 2+12-port 12Gb/s Expander - SAS 24-port 12Gb/s Expander - SAS + 4NVME(optional)

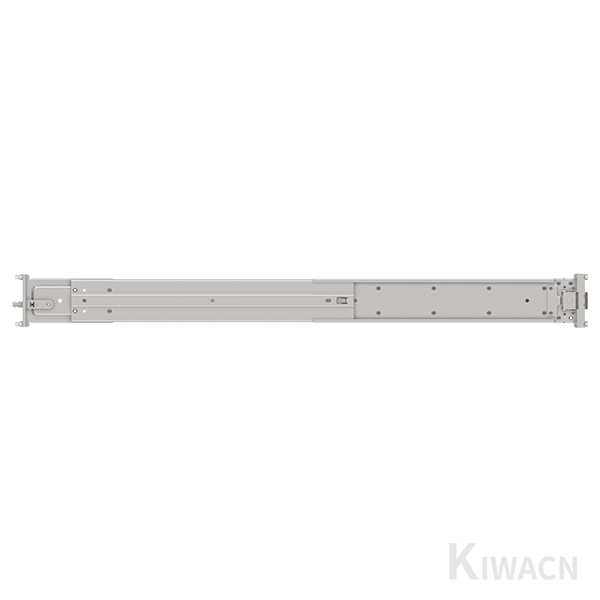

Rack rails	P/N:0304100007(Option)
Net Weight
Gross Weight
Package size(DWH)	1130680468mm
