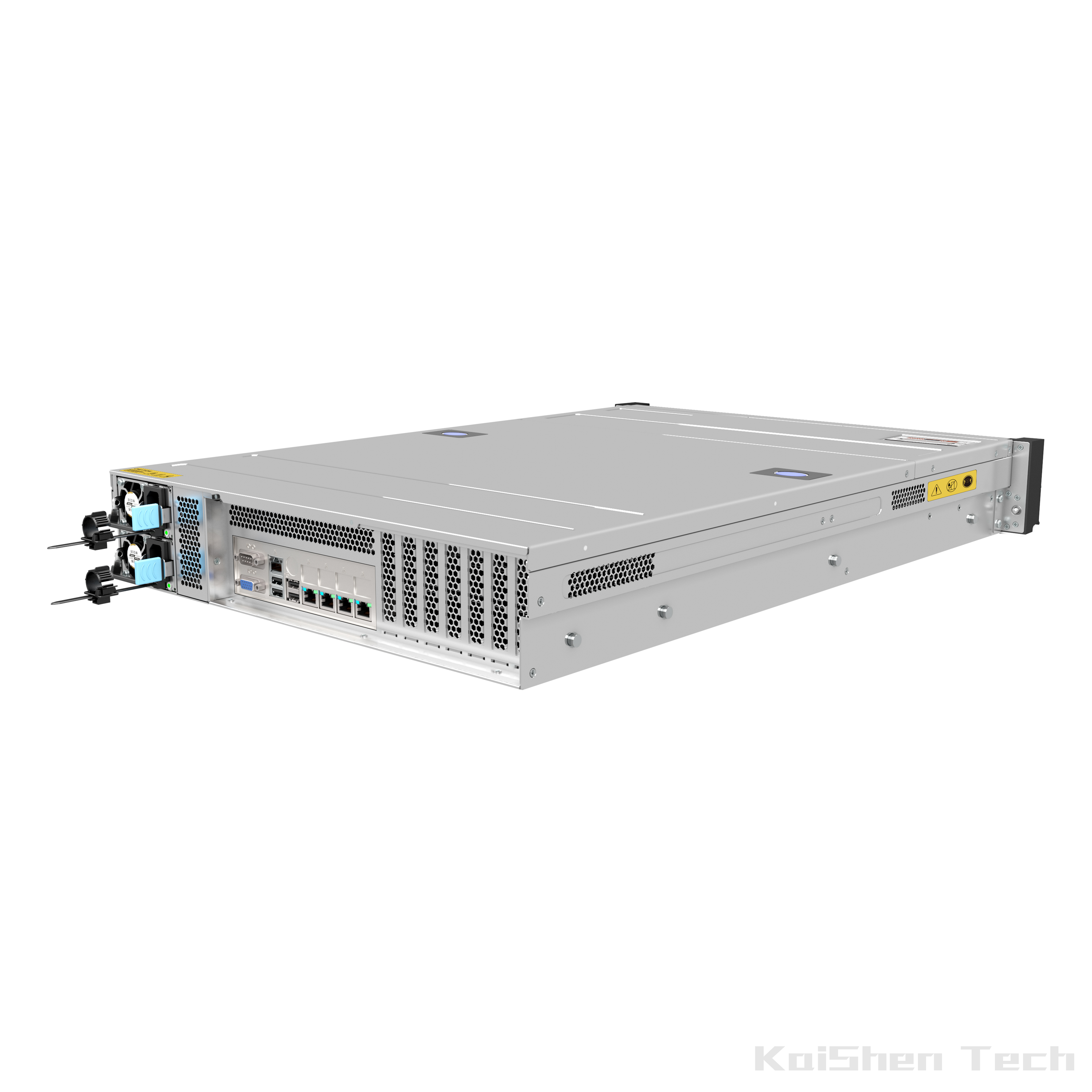

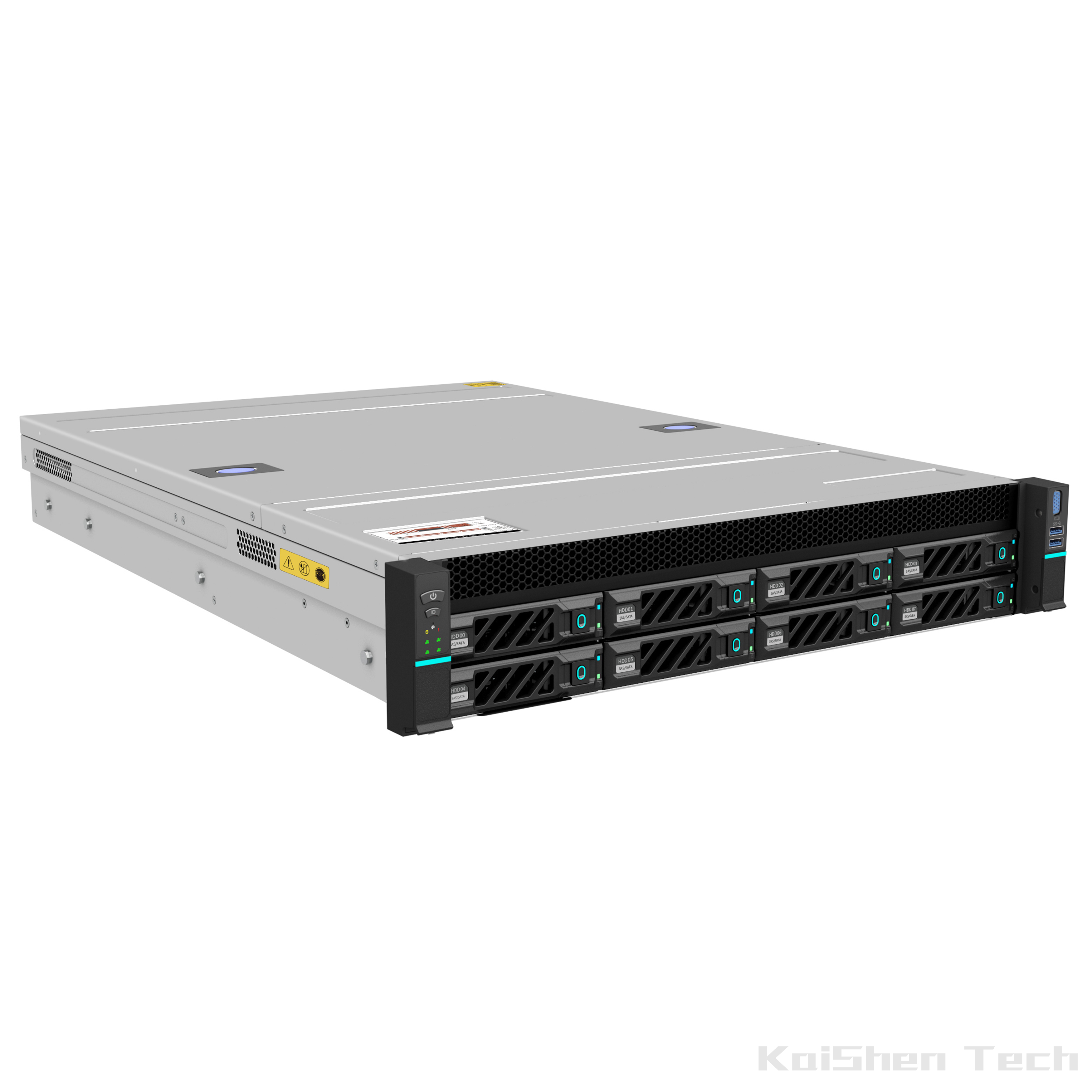

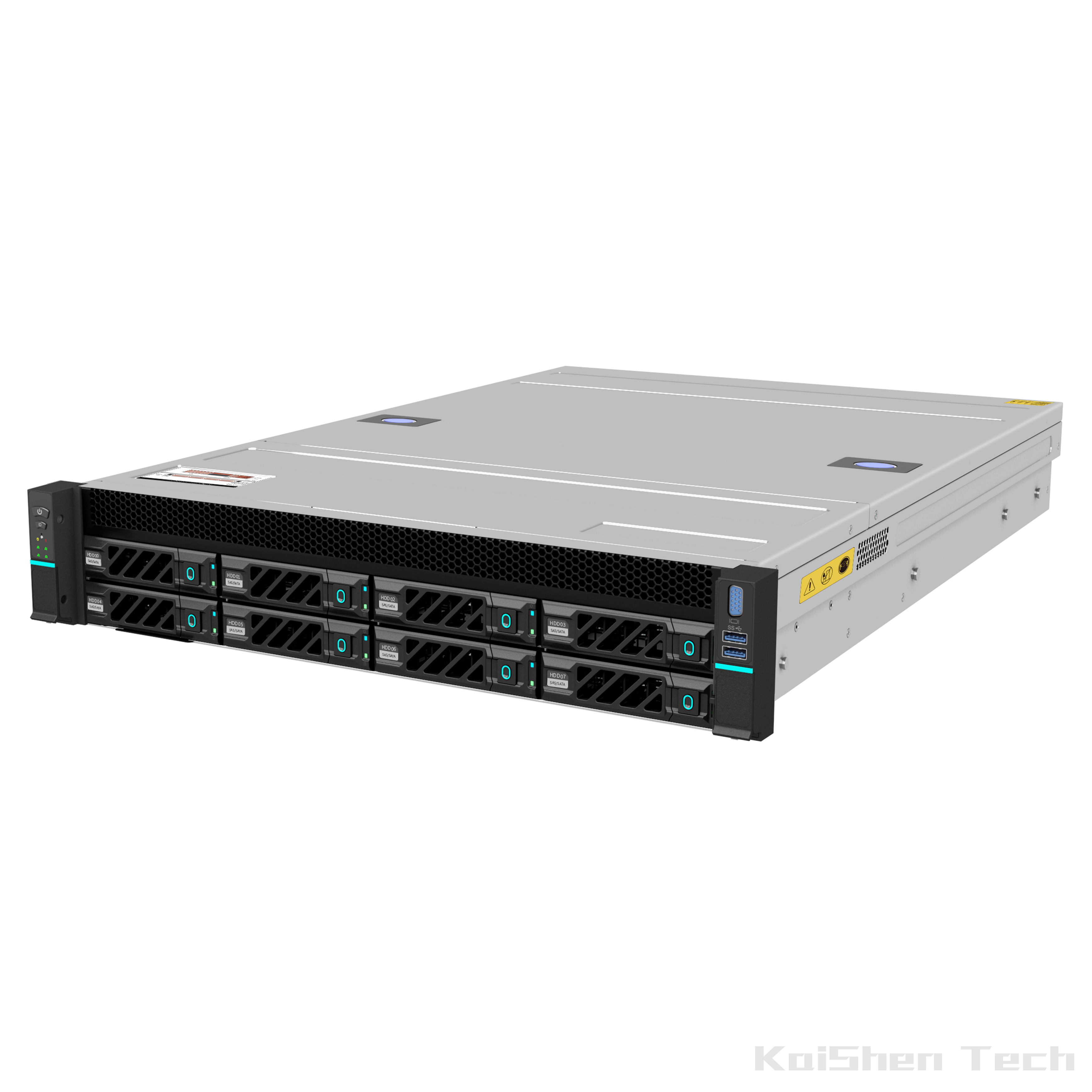

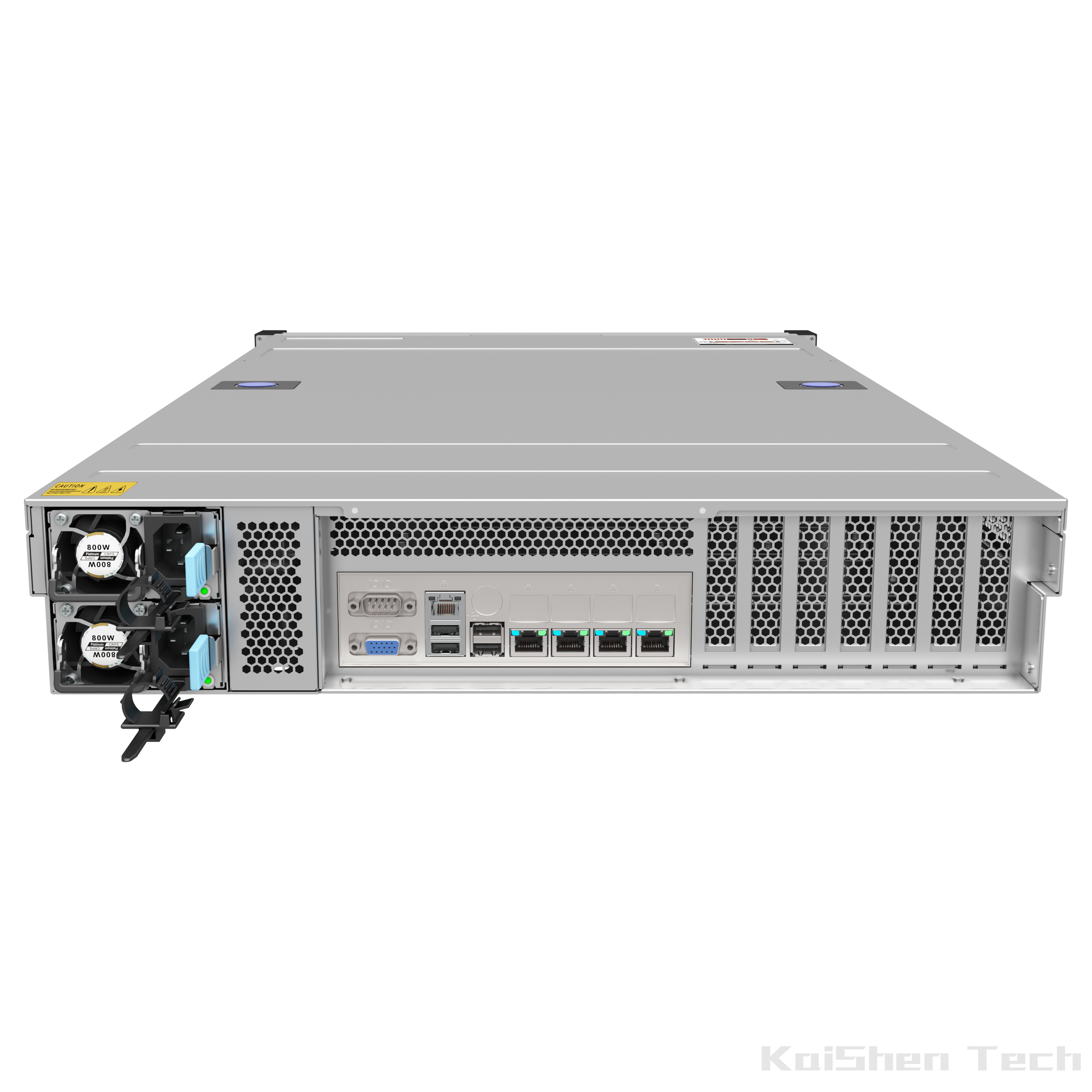

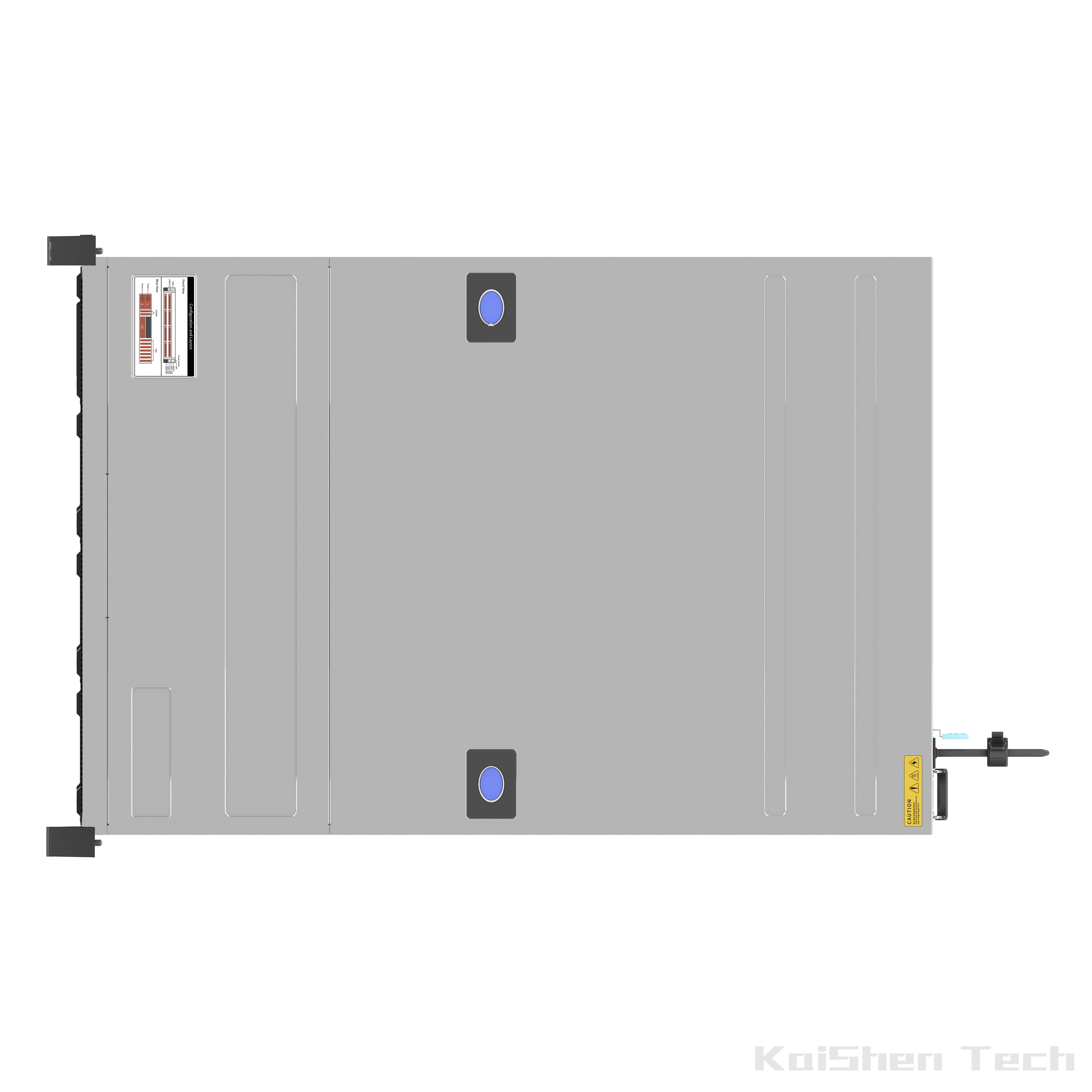

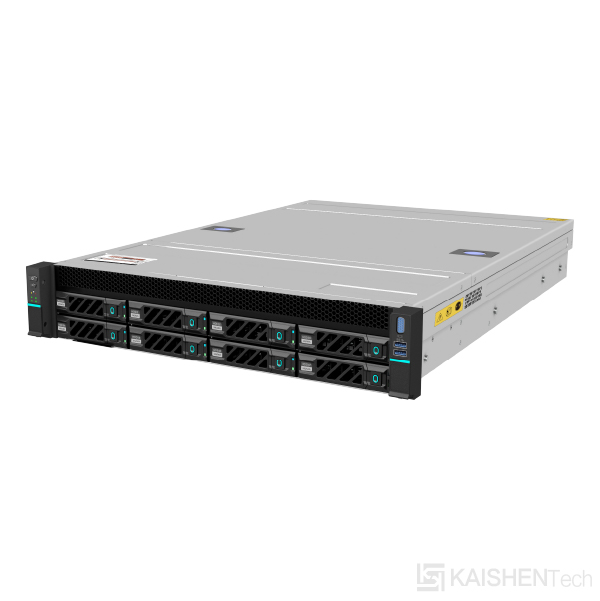

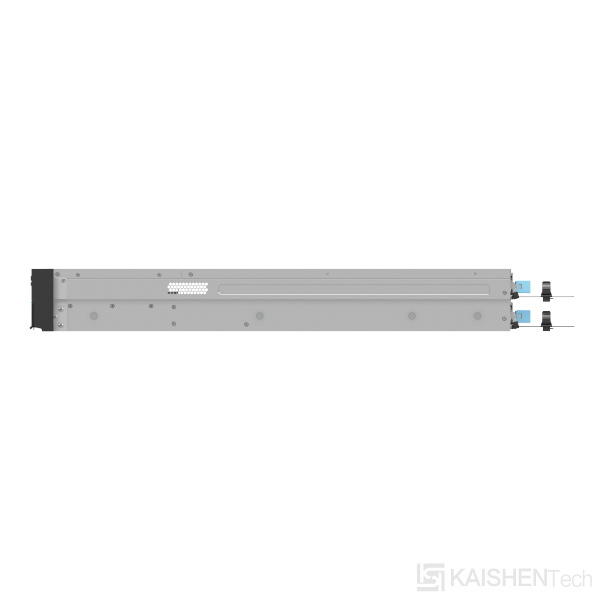

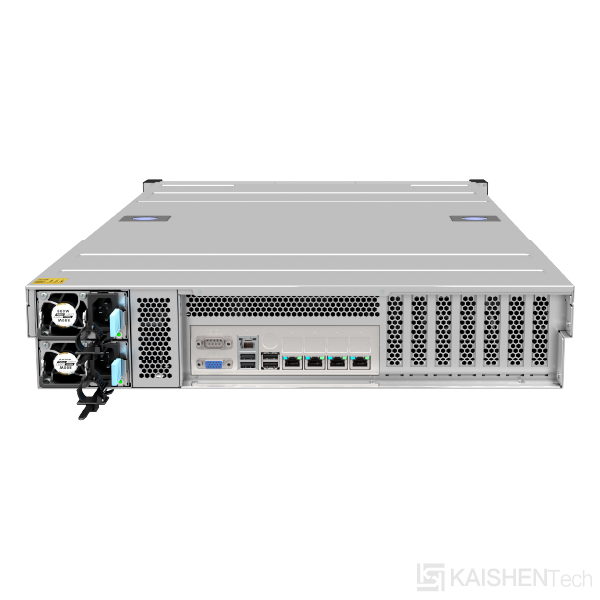

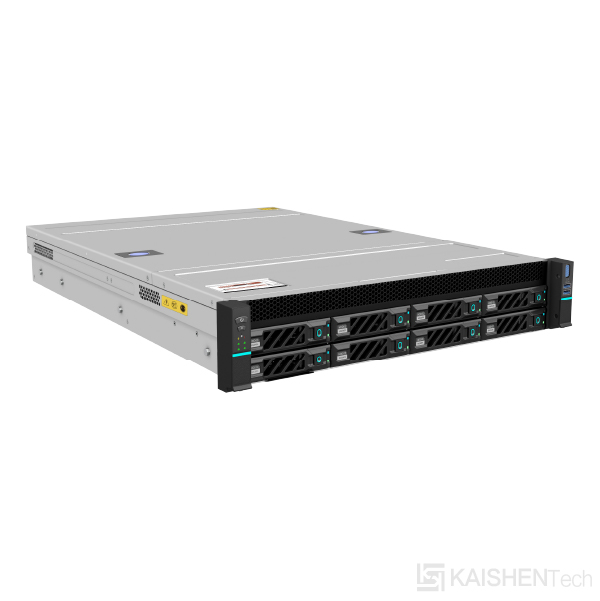

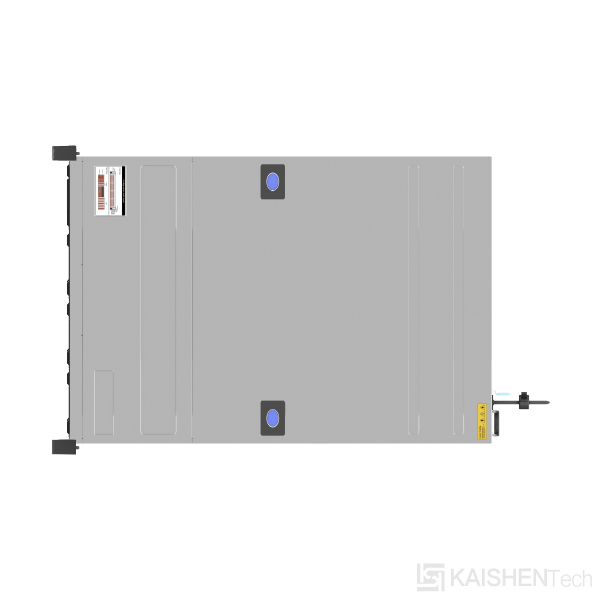

2u8-bays rack server chassis case

Product code	K32008	K32026	K32015	K32016	K32017
Chassis Category	2U Rack Mount
Materia	1.2mm SGCC(taiwan)
MB Form Factor	Extended ATX (12 "x 13")

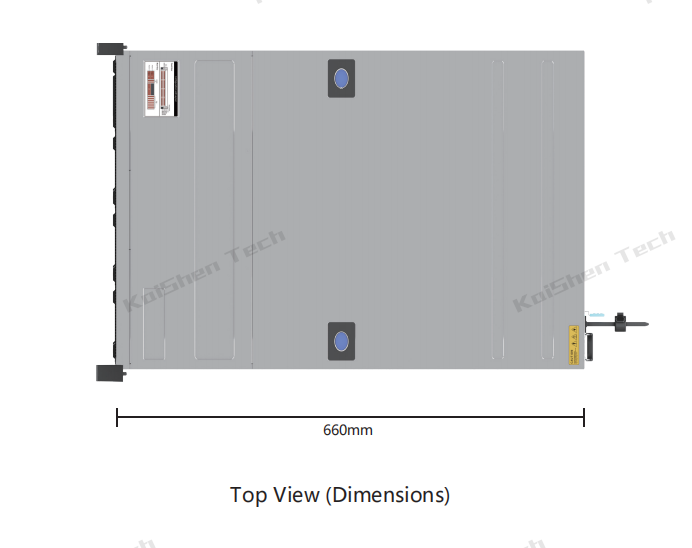

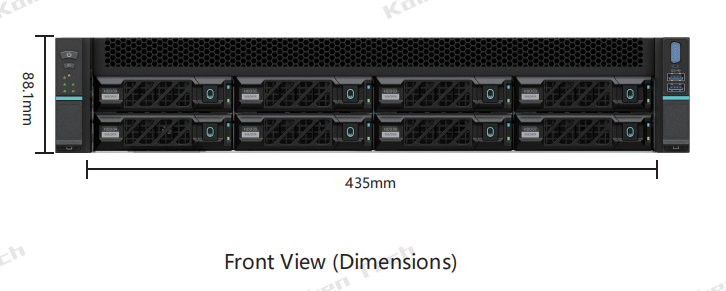

Dimensions (DWH)	660 * 435 * 88.1 (mm) 25.98 "x 17.12"; X 3.47 "
Drive Bays	3.5" Hot swap: 8, lnternal 2.5": 2, 2.5" Hot swap (Option): 2

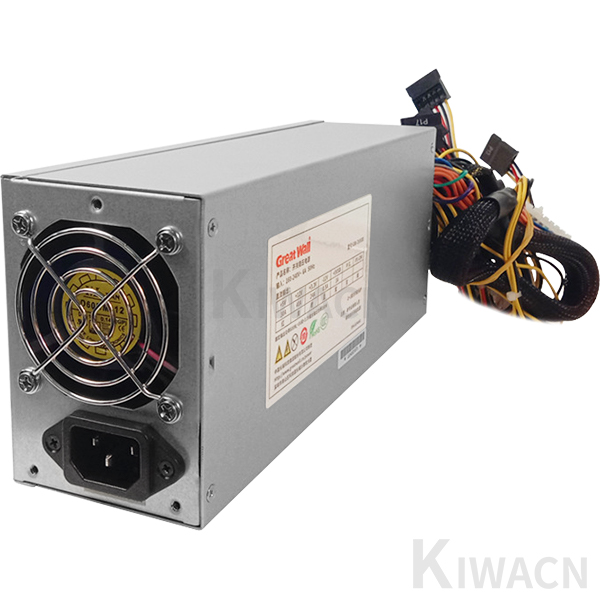

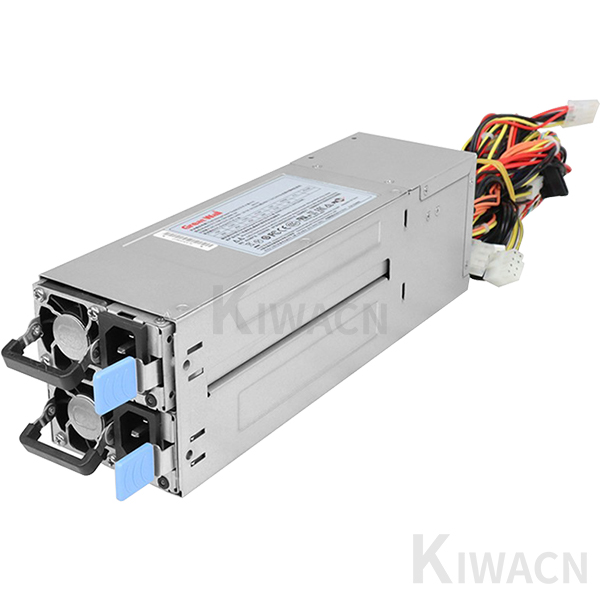

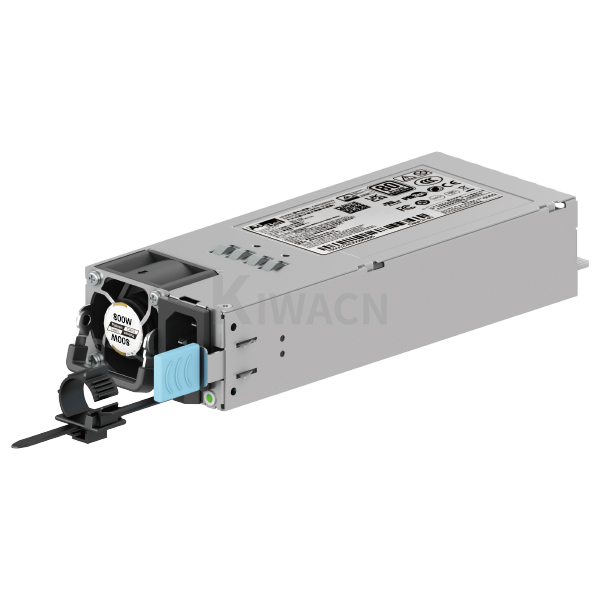

PSU Form Factor	2U Single or 1+1 Redundant
Indicators	1 * Power Status, 2 * LAN Activity, 1 * UID Status, 1 * HDD Status, 1 Warning Status
Front Control	1 * Power On/0ff, 1 * System Reset, 1 * UID; 2 * USB 2.0, USB3.0+VGA (Option), 1 * CD-ROM drive (Option)
Safety Device	Intrusion Switch (Option)
Cooling Fans	Middle: 3 x 80mm (T=38mm), PWM, 7500RPM		Middle: 2 x 80mm (T=38mm), PWM, 15000RPM Middle : 1 x 80mm (T=38mm) , PWM, 7500RPM
Expansion Slot	Length or 7 x Low Profile	Length or 9 x Low Profile	Supports 2nd PCIE, 3X Full Height	Supports 3rd PCIE, 3X Full Height	Supports 4th PCIE, 3X Full Height
Riser Card Moudle	NO		PCIE16x 3.0, PCIE16x 4.0(Option)

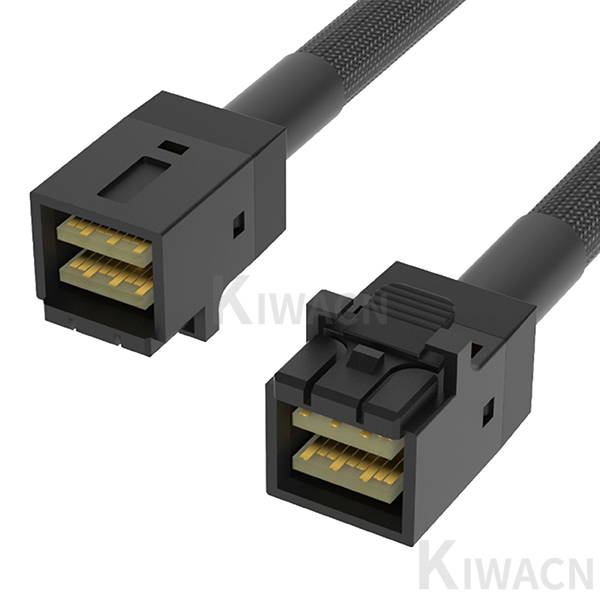

HDD Backplane	8-port 12Gb/s - SAS, 8-port 6Gb/s - SAS (Option), three model (nvme/u.2/12gb/s) backplane(Option)

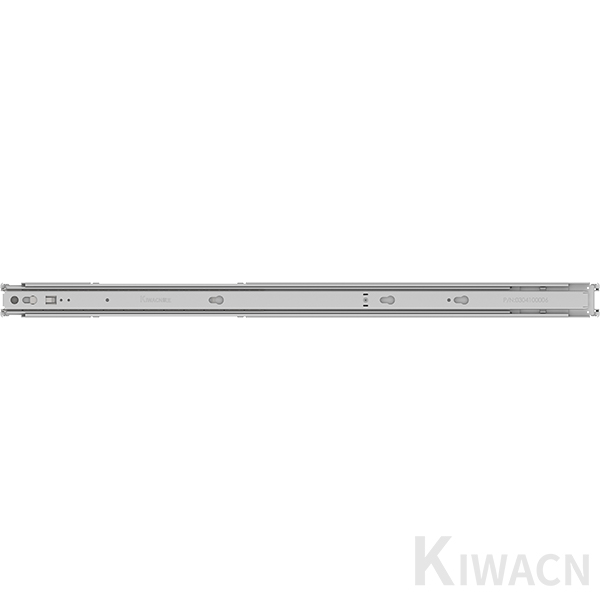

Rack Rails	Option
Net weight	10.75kg
Gross weight	13.1kg
Package size(DWH)	730x620x220mm
