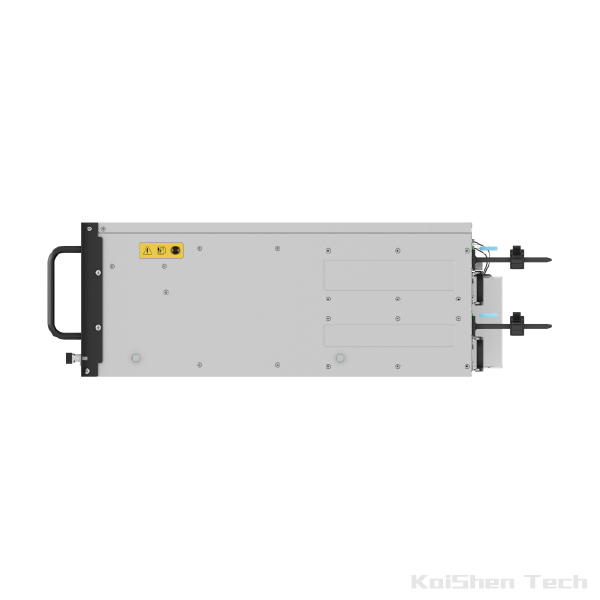

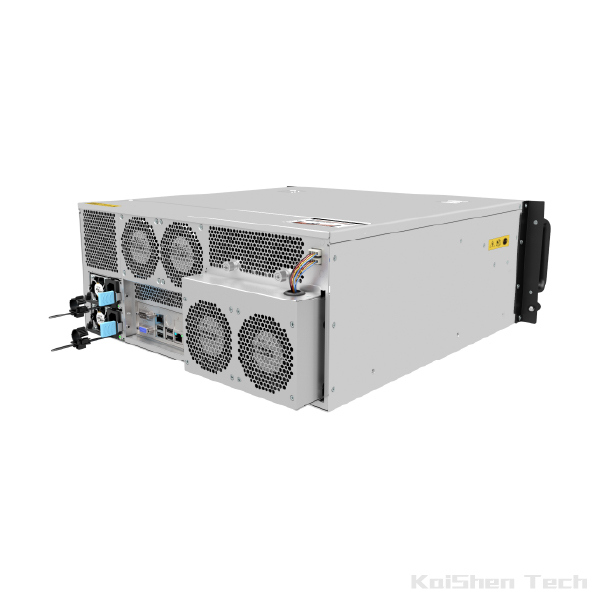

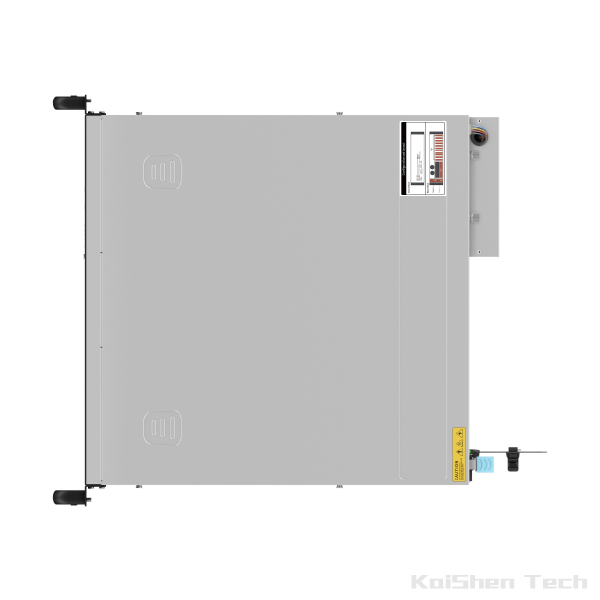

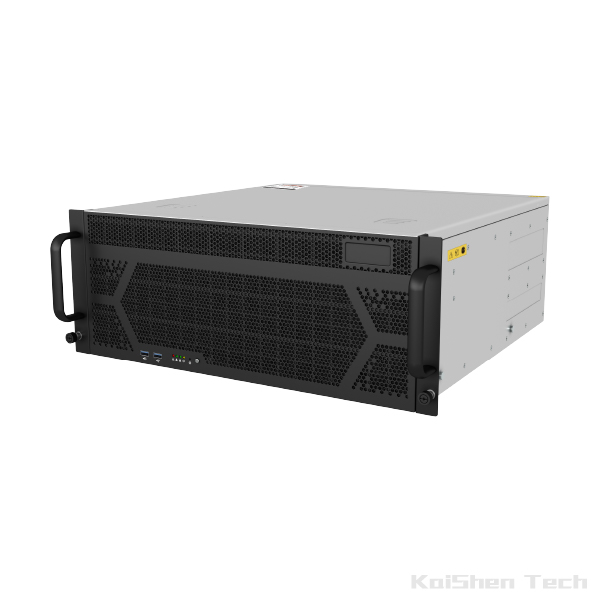

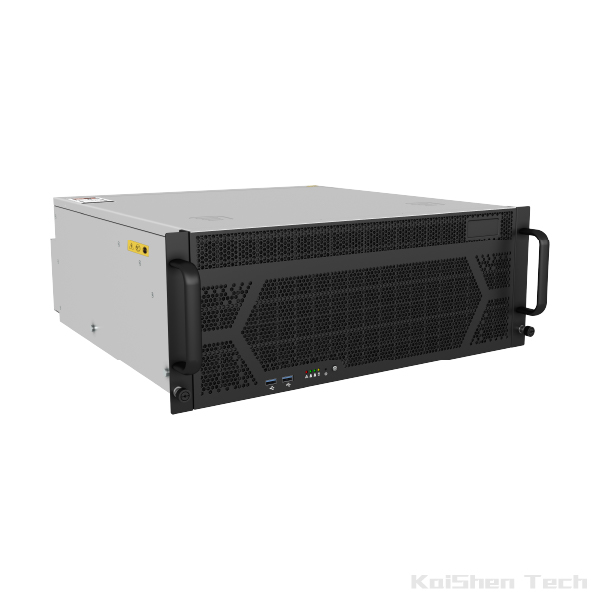

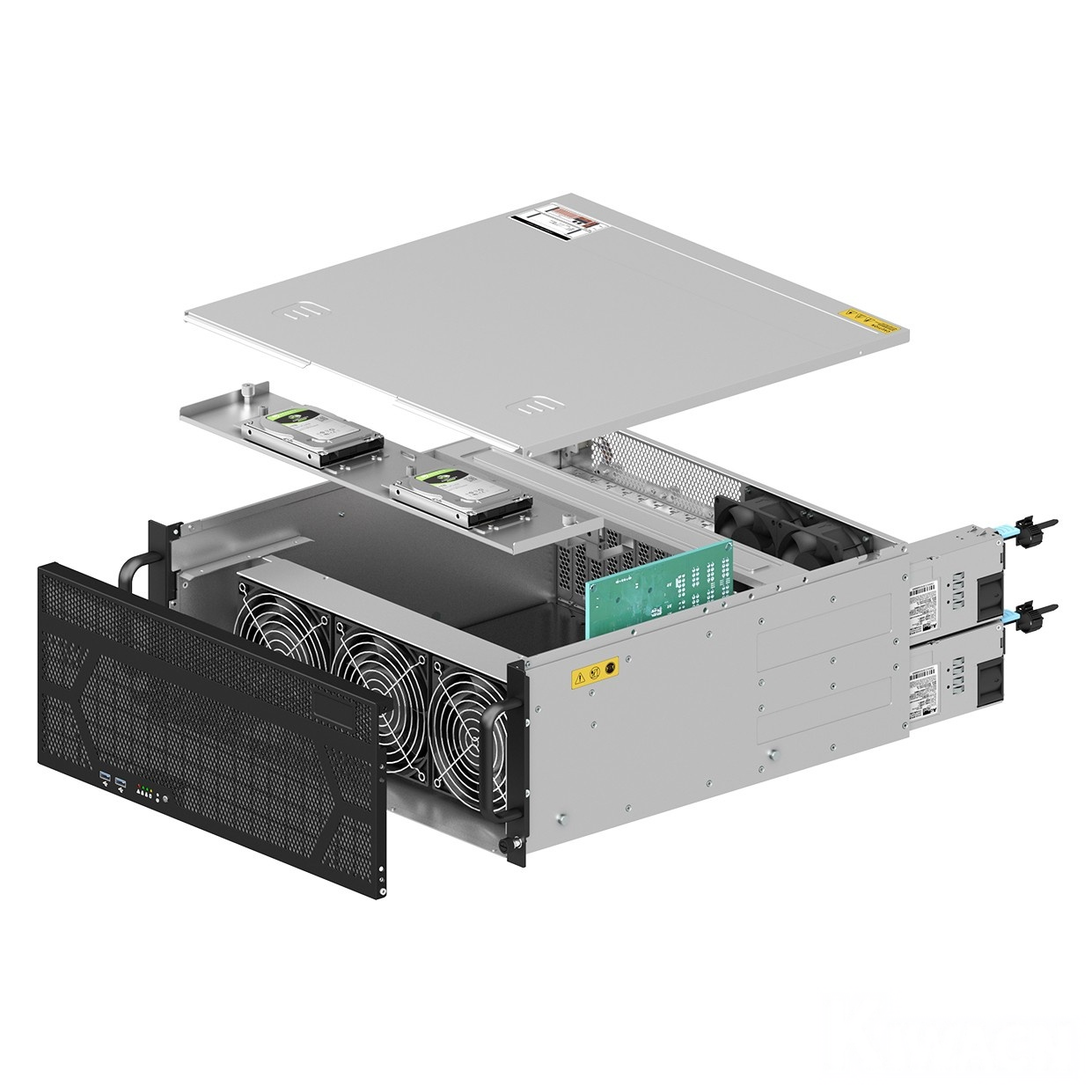

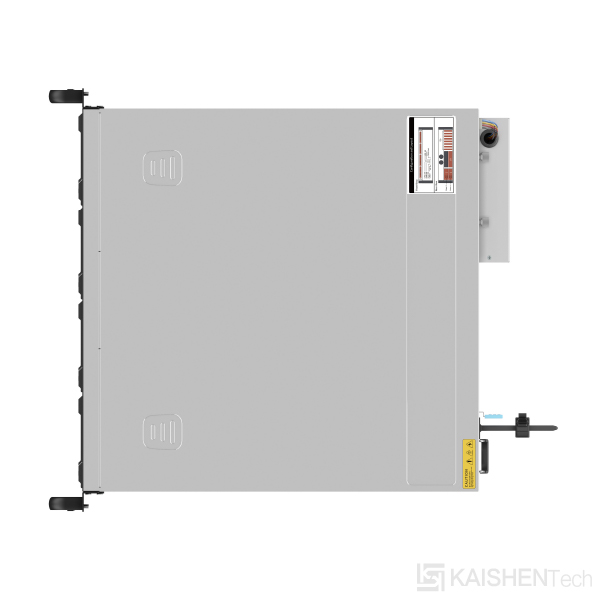

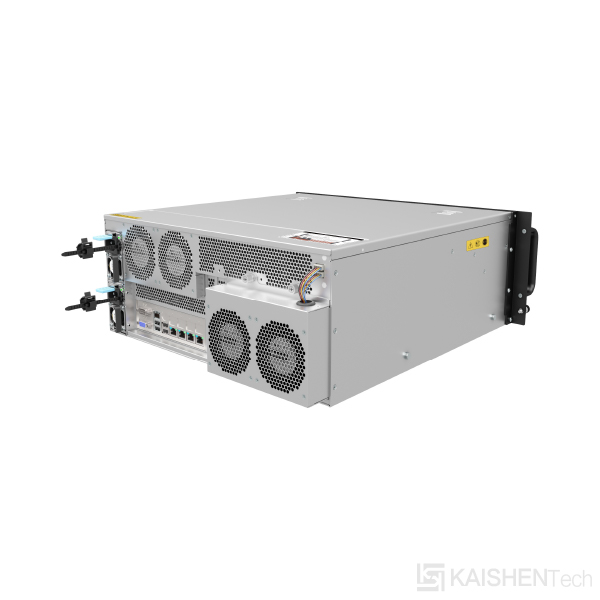

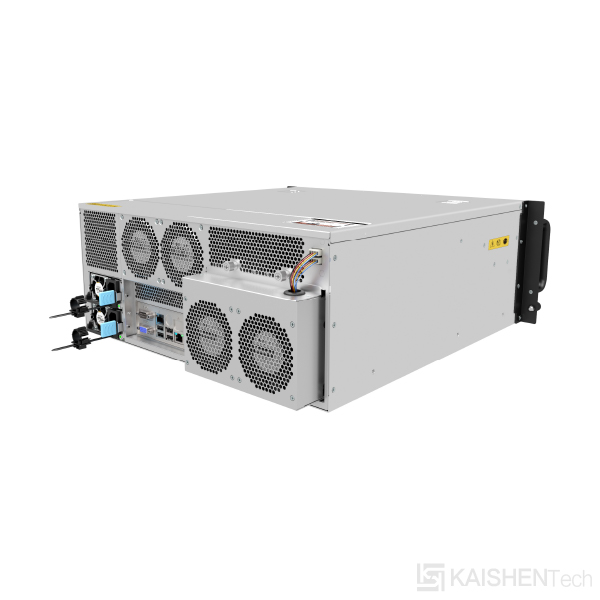

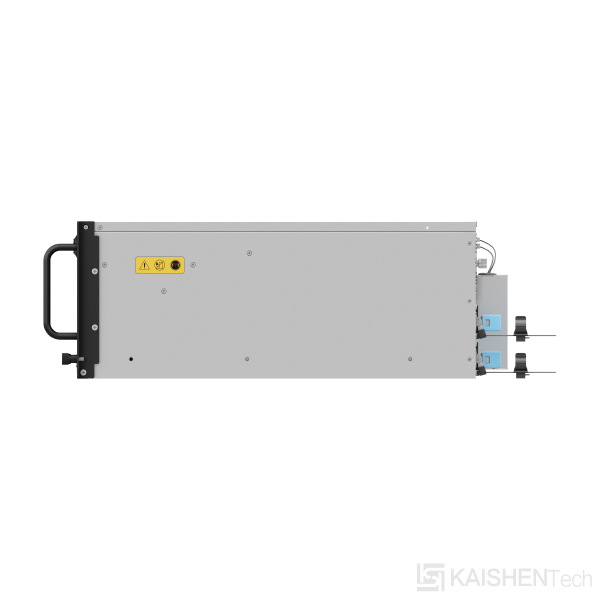

4U No Bay GPU Server Chassis

4U rack server chassis

Depth: 450mm

Install 2 or 4 double-wide GPU

The motherboard supports (15”x13”) and below specifications

Supports 4U standard power supply/ATX/1+1 redundant power supply or side-mounted redundant power supply

Capable for GPU computing/GPU reasoning/cloud computing/cloud rendering/storage server, etc.

Customized Accepted

Download

Technical Parameter Dimensional Structure Download

Product code	K14005	K14007
Chassis Category	4U Rack mount
Material	1.2mm SGCC(taiwan)
MB Form Factor	Extended ATX Extra Large (15.12 "x 13.2")	Extended ATX (12”x13”)

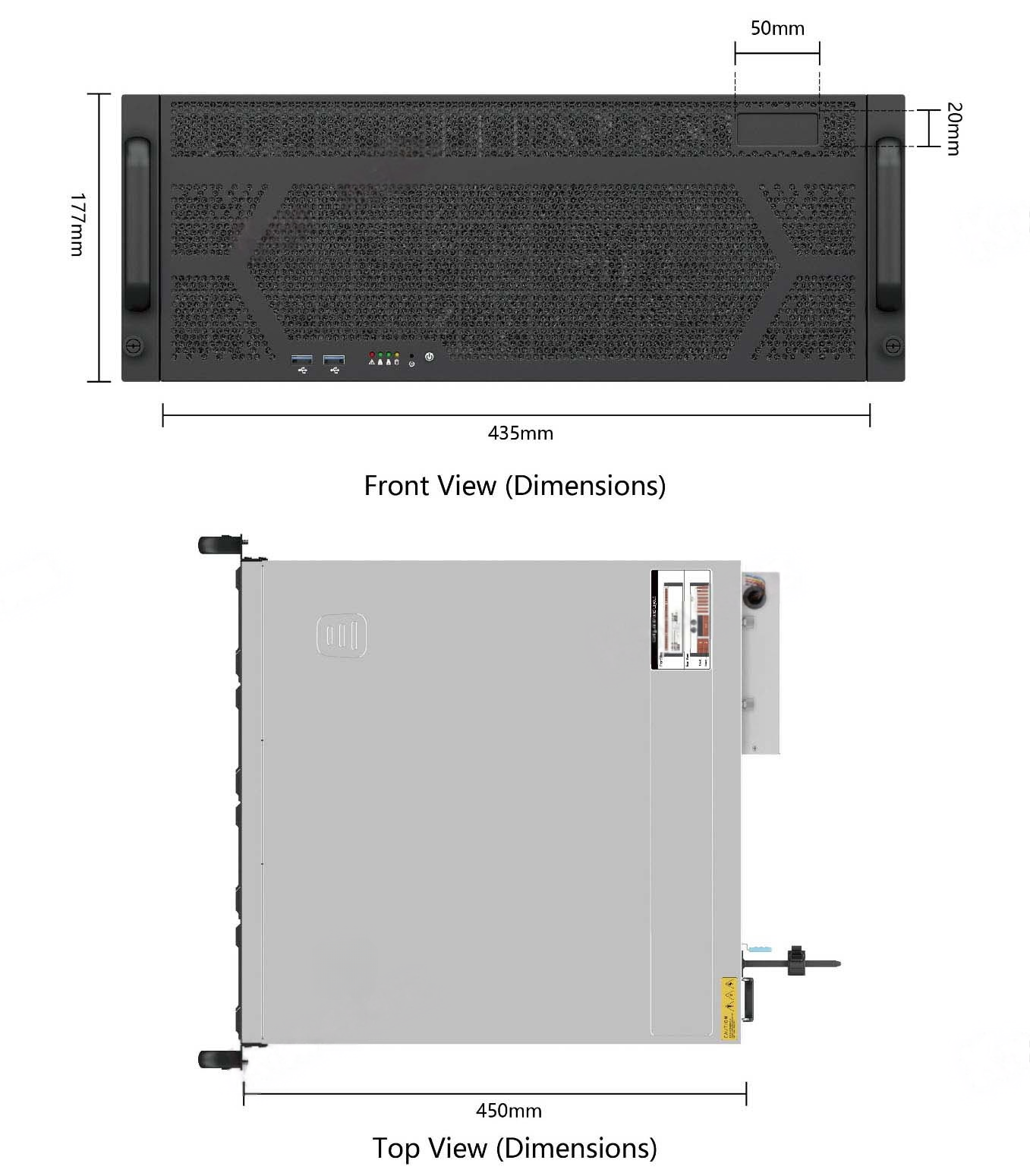

Dimensions (DWH)	450x435x177 (mm) 17.72” x 17.12” x 6.97”
Drive Bays	Internal 2.5"：2	Internal 3.5"：2
PSU Form Factor	Redundant power supply board 2000W Redundant power supply board 3000W(Option)	2U Single or ATX or1+1 Redundant
Indicators	1 x Power Status, 1 x HDD Activity , 2 x LAN Activity
Front Control	Power On/Off, System Reset,2 x USB 2.0
Coolng Fans	Middle: 3x 12038 Rear inside: 2 x 8025(Option)， Rear hanger 2*8038 (Option)
Expansion Slots	11 x Low Profile
HDD Backplane	NO
Rack Rails	P/N:0304100005(Option)
Net Weight	10.4kg	9.7kg
Gross Weight	12.7kg	12.0kg
Package Size(DWH)	620x600x270mm
