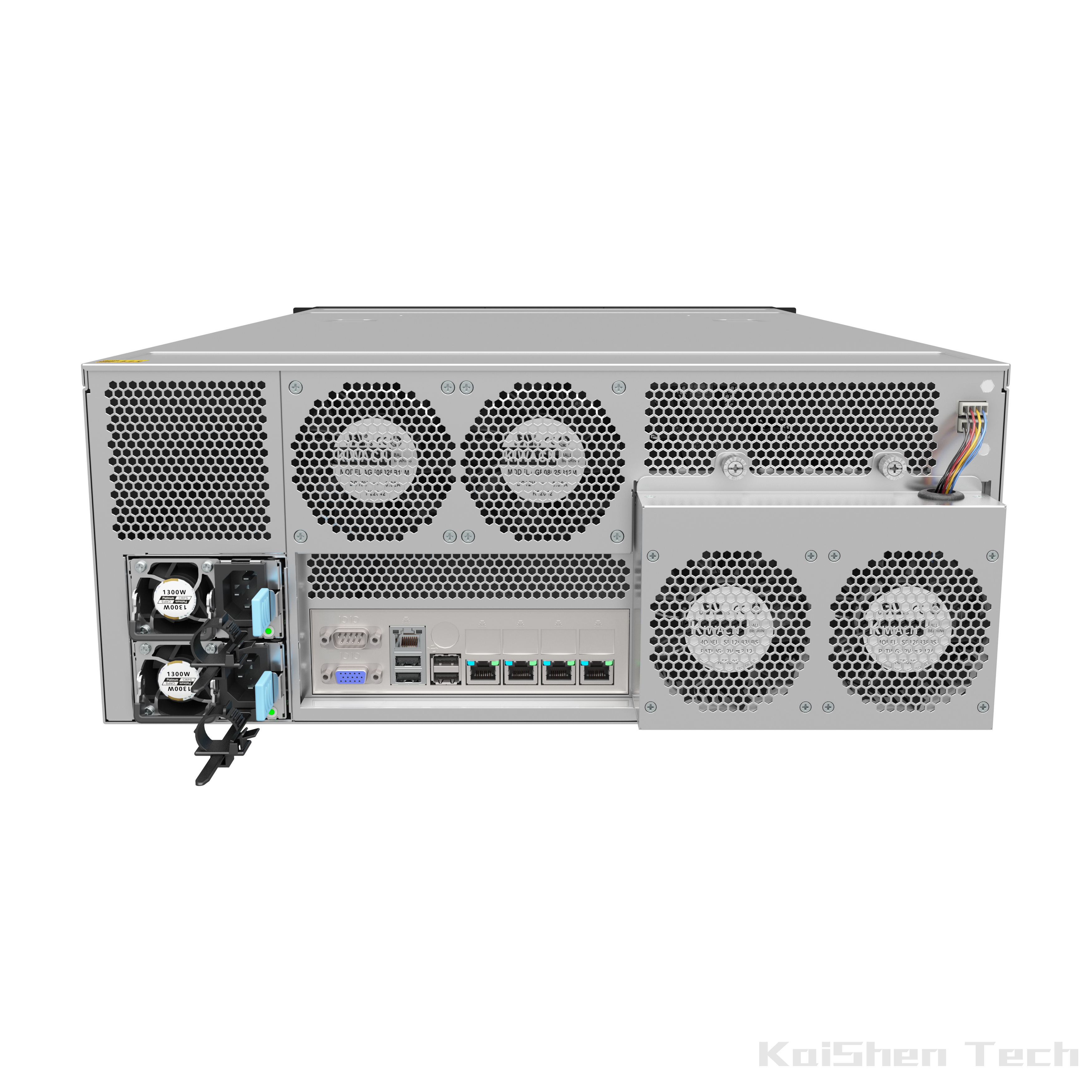

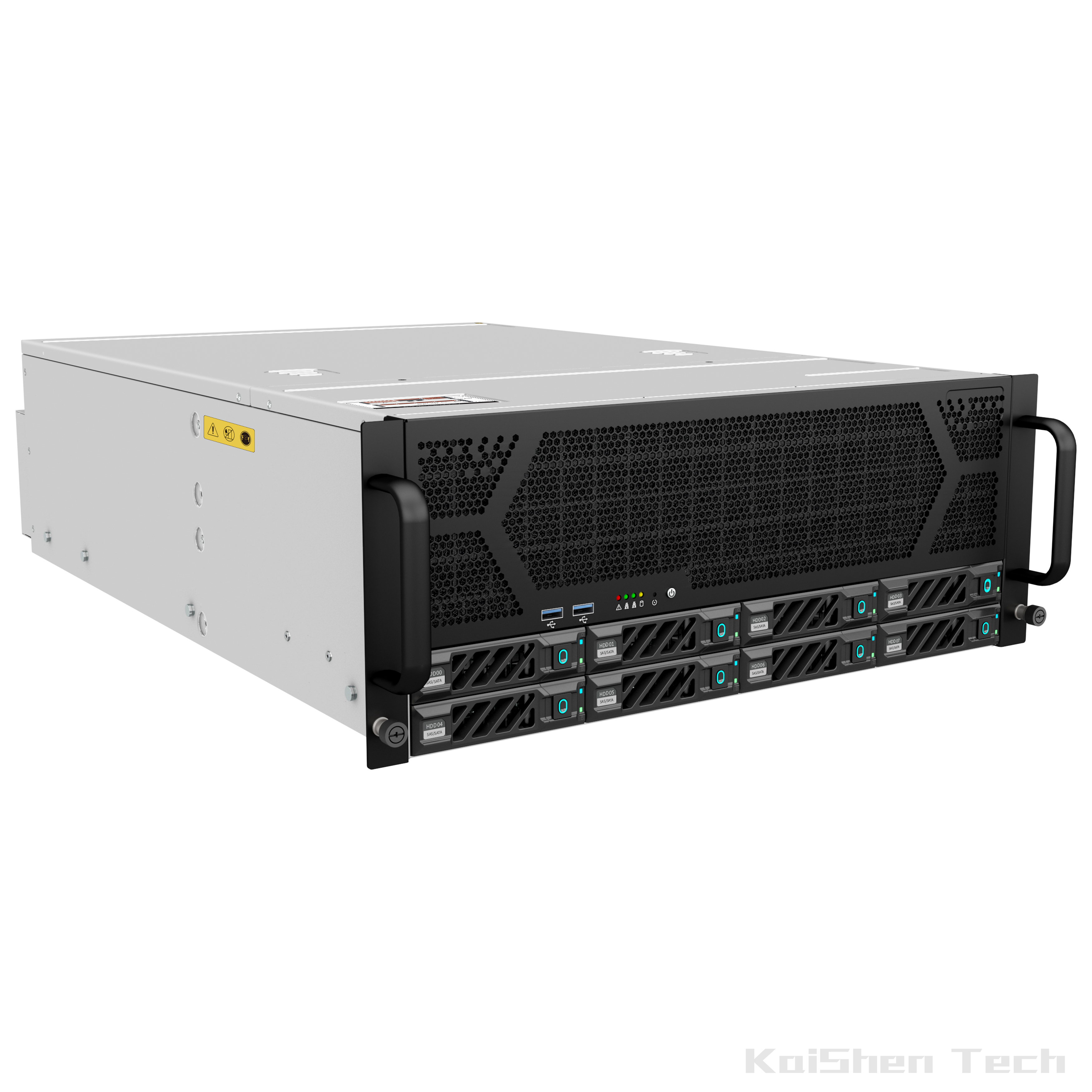

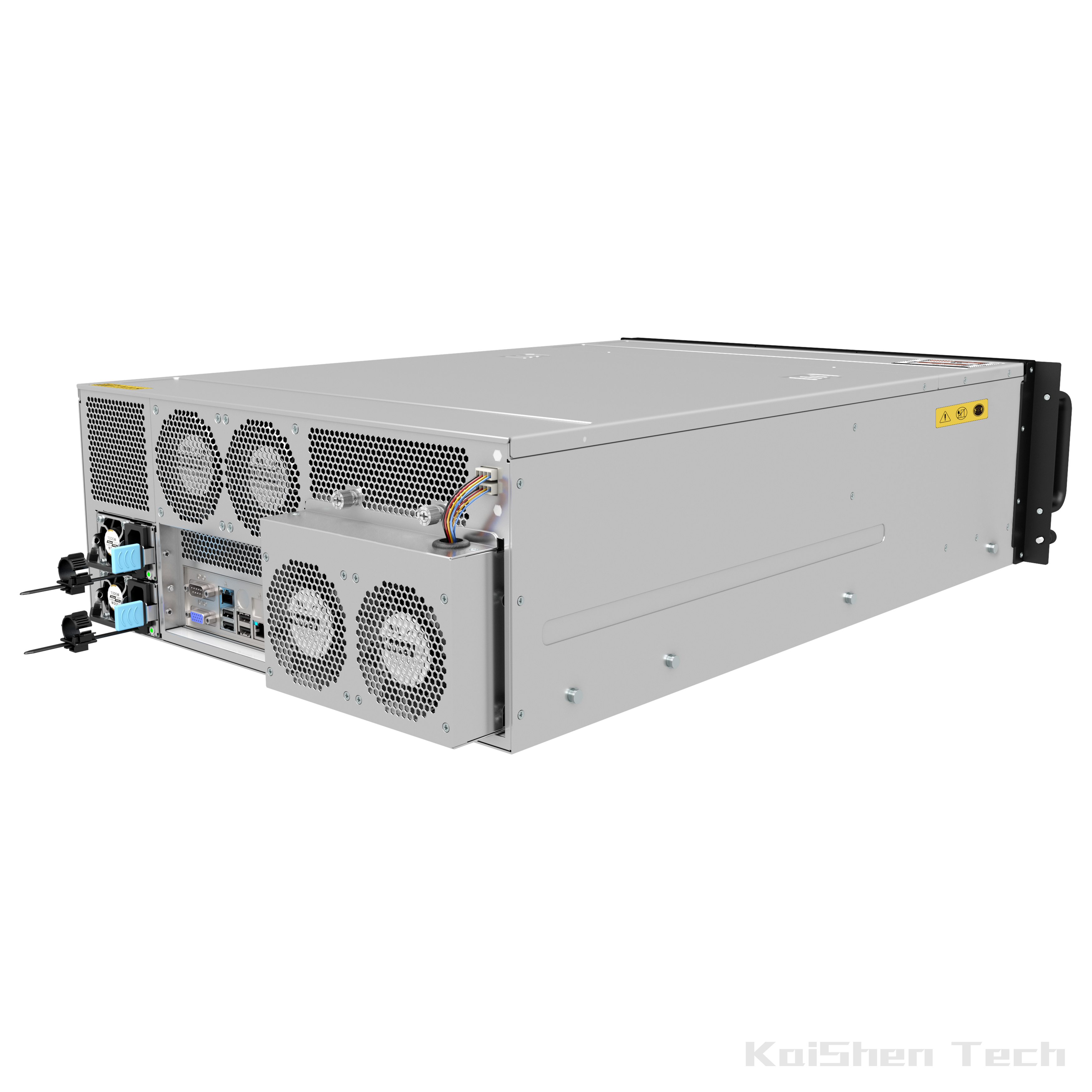

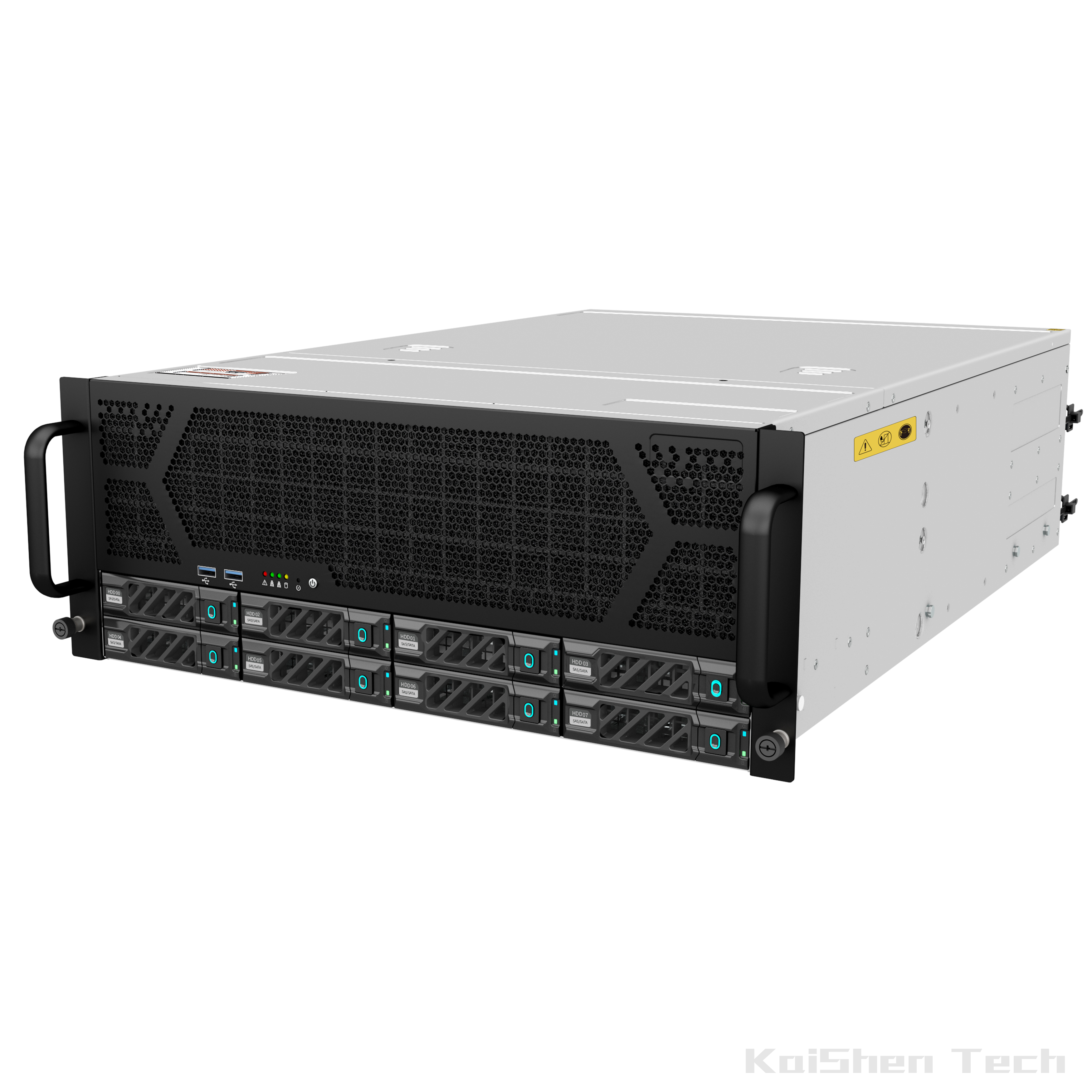

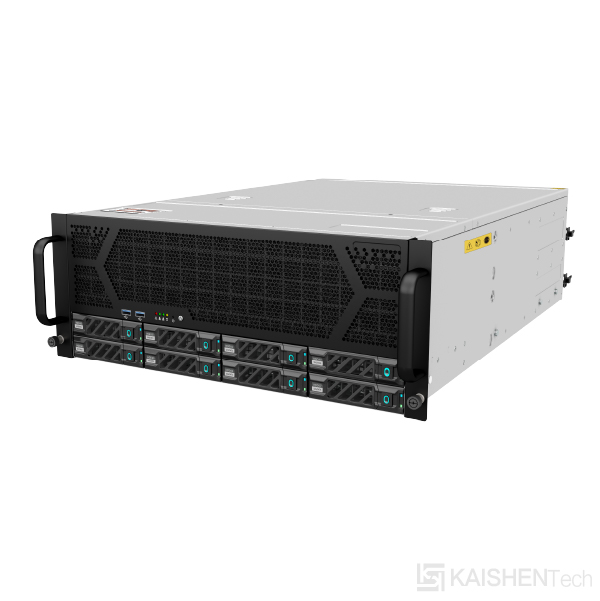

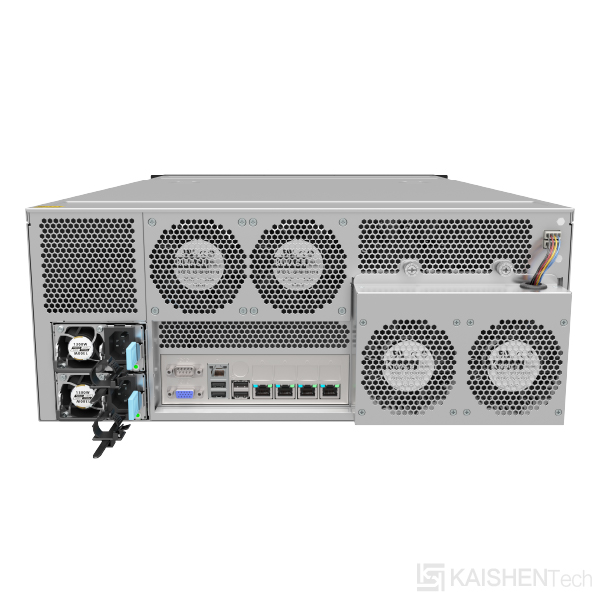

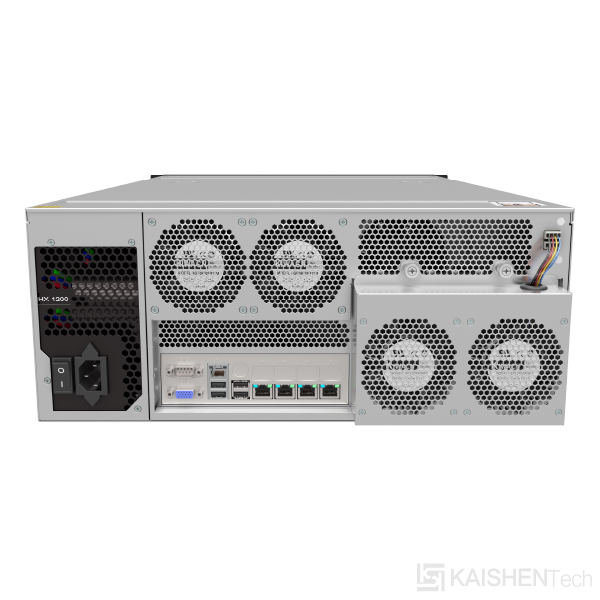

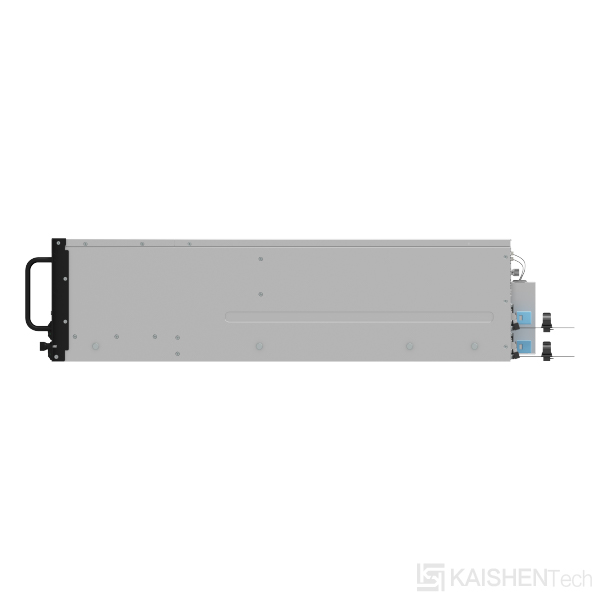

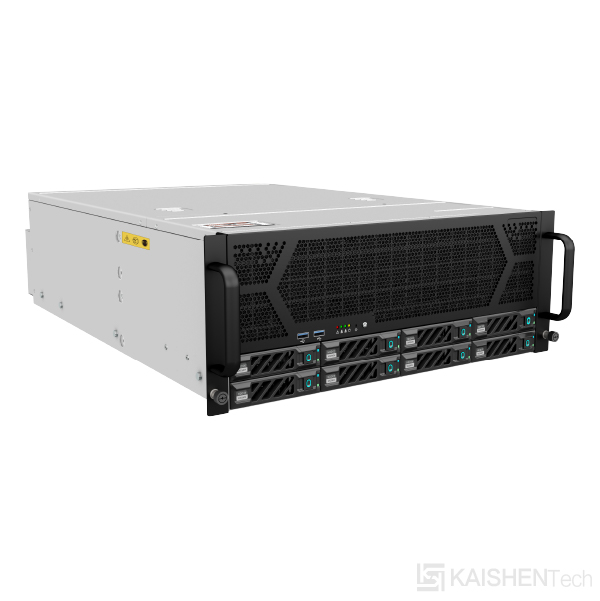

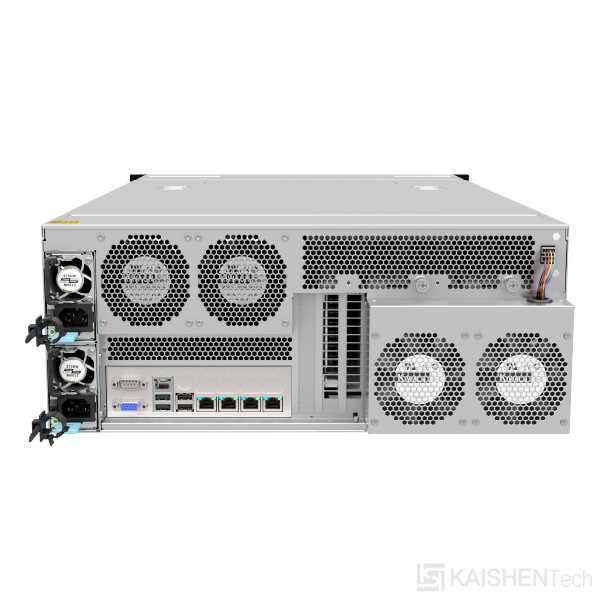

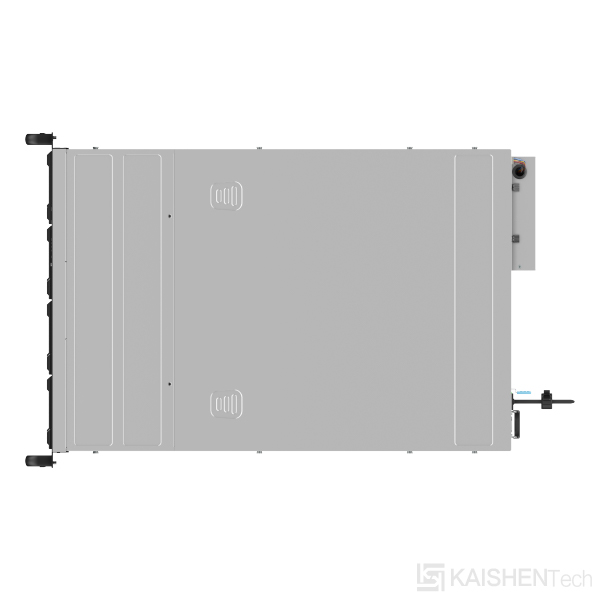

4U 8 Bays Server Chassis

4U rack server chassis

6GB/S, 12GB/S, three model (nvme/u.2/12gb/s) backplane

Install 2 or 4 double-wide GPU

The motherboard supports (15”x13”) and below motherboards

Supports 4U standard power supply/ATX/1+1 redundant power supply or side-mounted redundant power supply

Capable for GPU computing/GPU reasoning/computing power/cloud rendering/storage server, etc.

Customized Accepted

Download

Technical Parameter Dimensional Structure Download

Product code	K34012	K34013	K34016
Chassis Category	4U Rack mount
Material	1.2mm SGCC(taiwan)
MB Form Factor	Extended ATX (12”x13”)	Extended ATX Extra Large (15.12 "x 13.2")

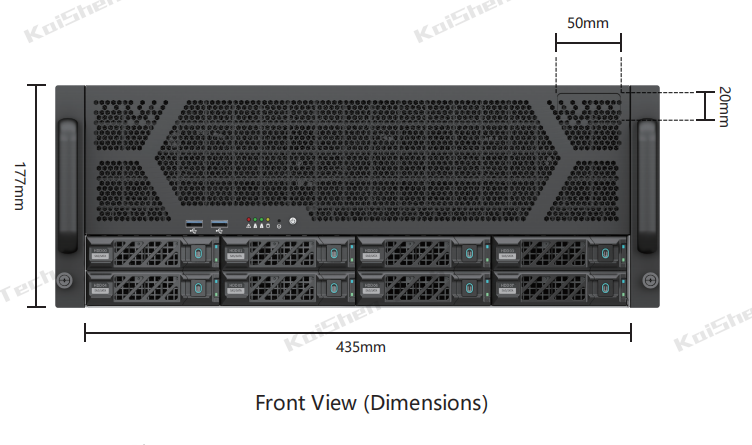

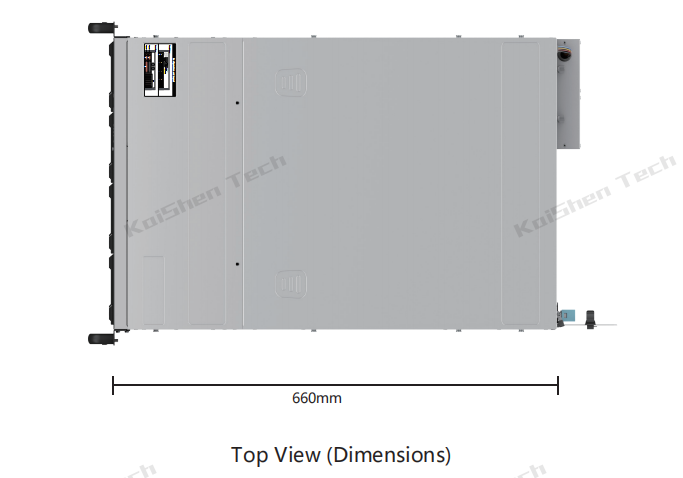

Dimensions (DWH)	660 x 435 x 177 (mm) 25.98” x 17.12” x 6.97
Drive Bays	3.5" Hot-swap：8 Internal 2.5"：2

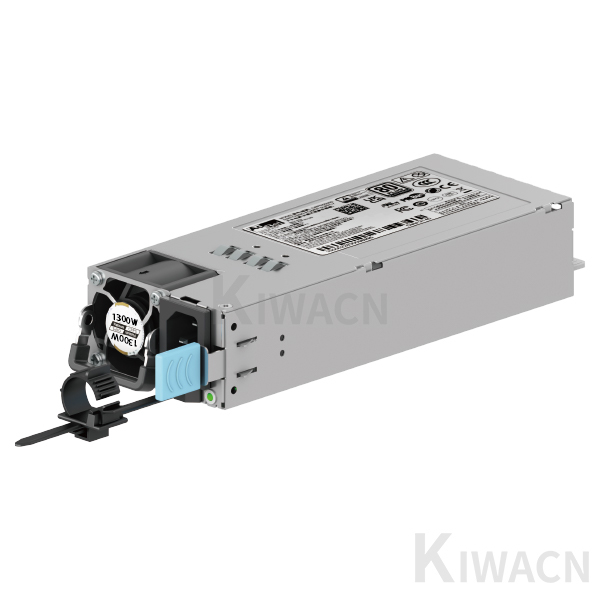

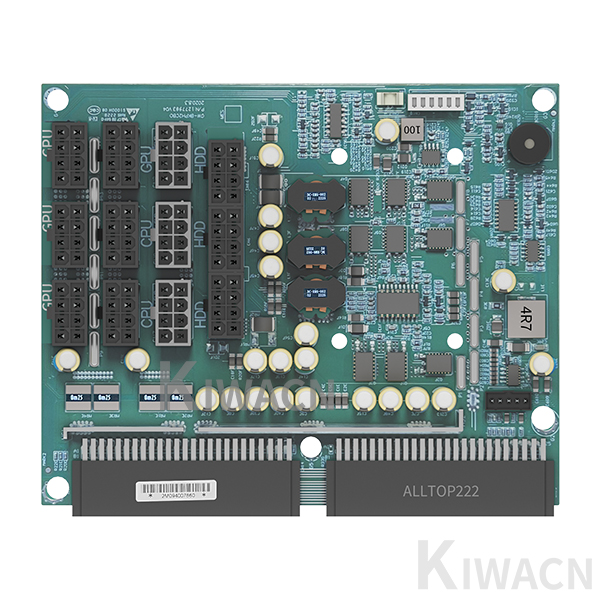

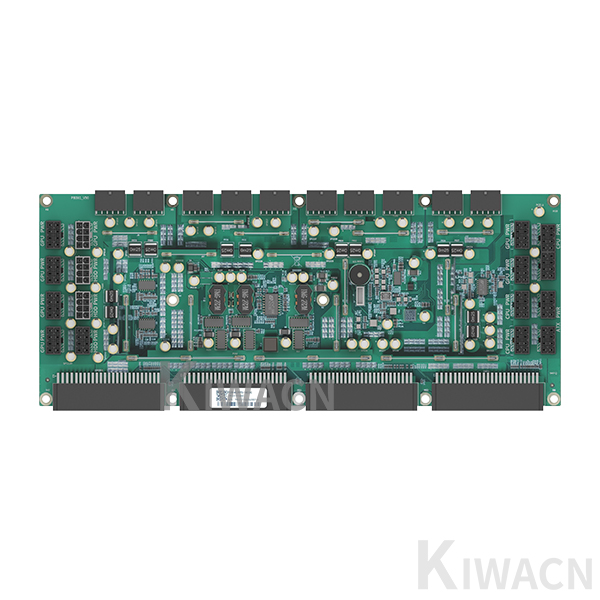

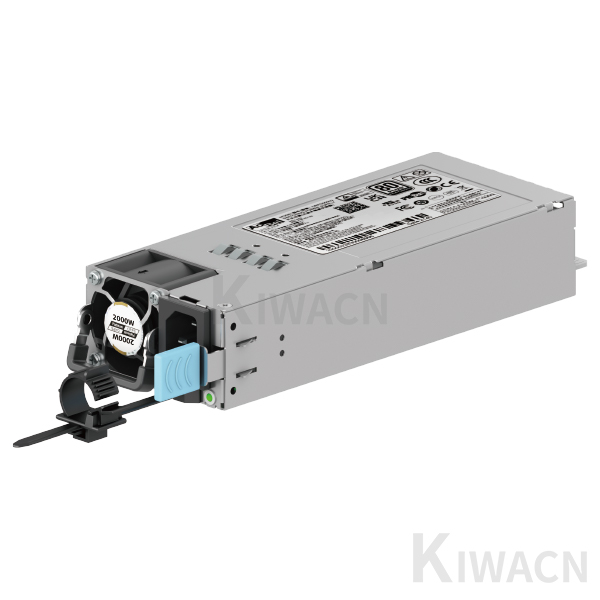

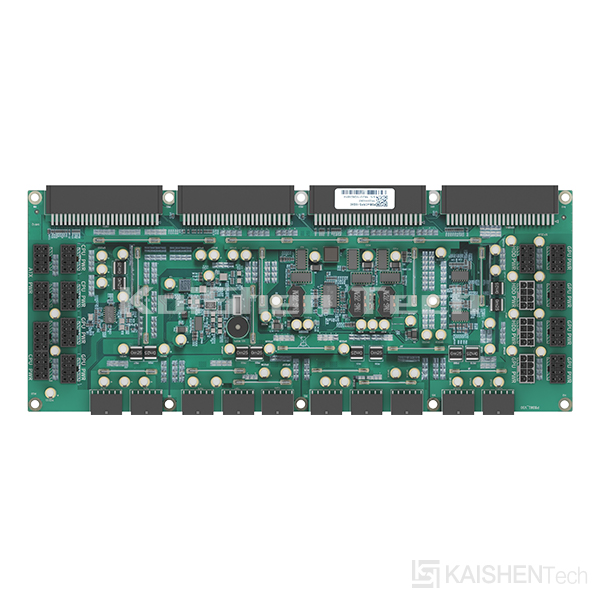

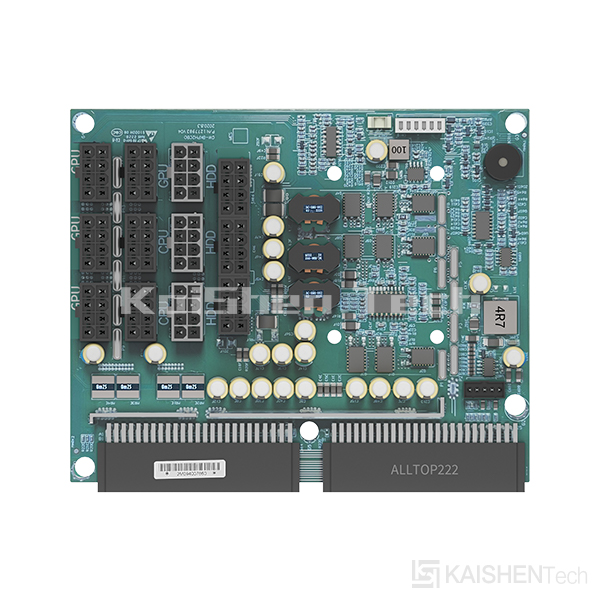

PSU Form Factor	2U Single or ATX or 1+1 Redundant	Redundant power supply board 2000W Redundant power supply board 3000W(Option)
Indicators	1 x Power Status, 1 x HDD Activity , 2 x LAN Activity
Cooling Fans	Middle: 3x 12038 Rear inside: 2 x 8025(Option)， Rear hanger 2*8038 (Option)		Middle: 8x 8038, PWM Rear inside: 2 x 8025，Rear hanger 2*8038
Expansion Slots	8 x Low Profile	11 x Low Profile

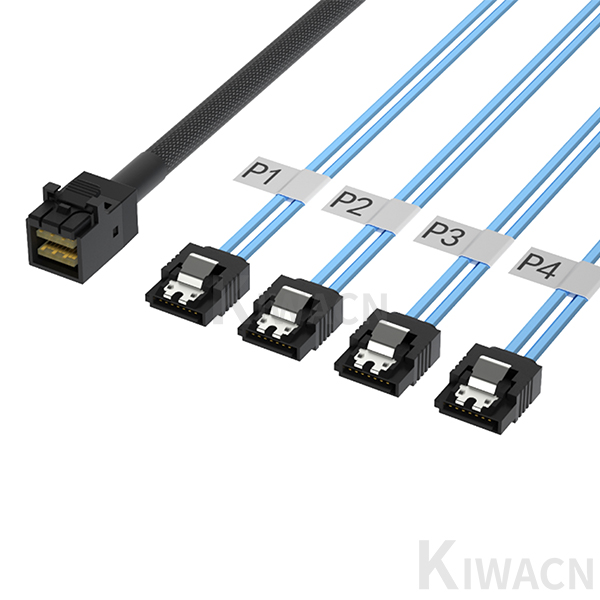

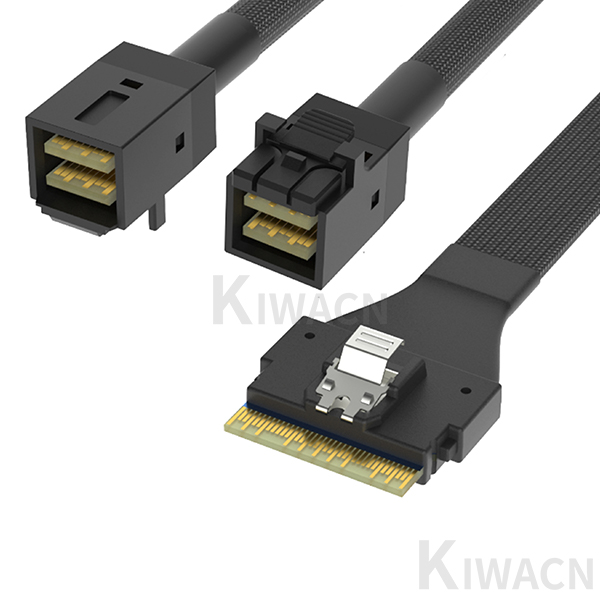

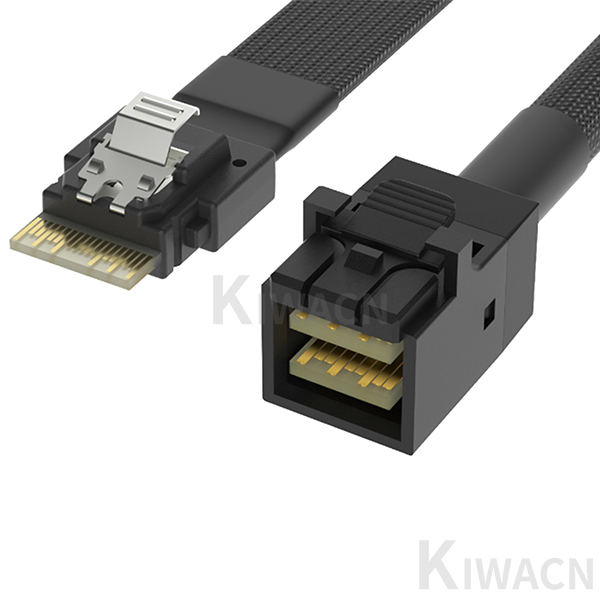

HDD Backplane	8-port 12Gb/s - SAS, 8-port 6Gb/s - SAS (Option), three model (nvme/u.2/12gb/s) backplane(Option)
Rack Rails	P/N:0304100006(Option)
Net Weight	15.4kg	16.4kg
Gross Weight	18.1kg	19.1kg
Package Size(DWH)	830x600x280mm
