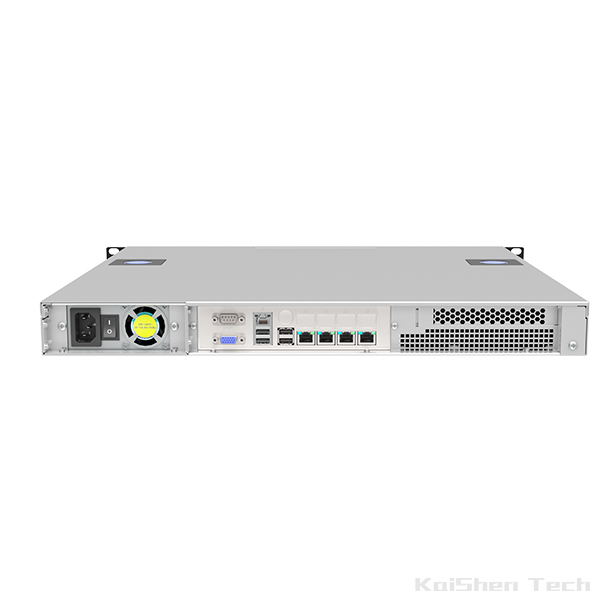

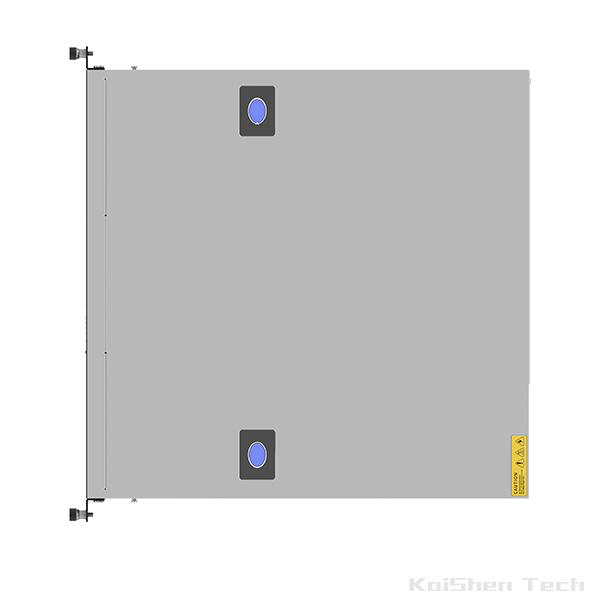

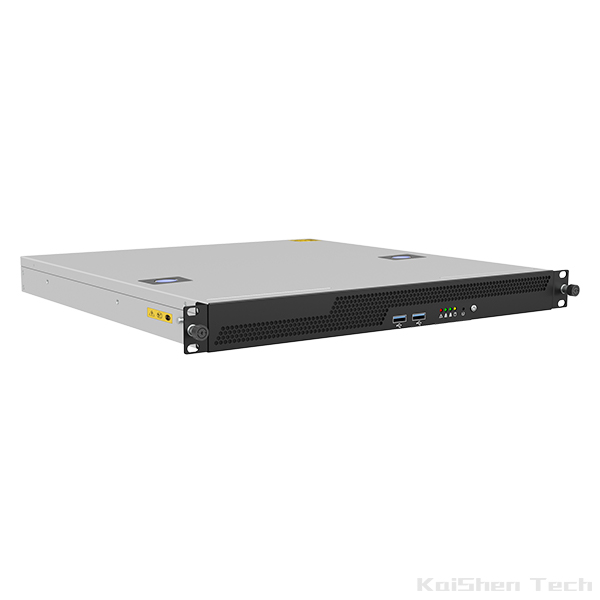

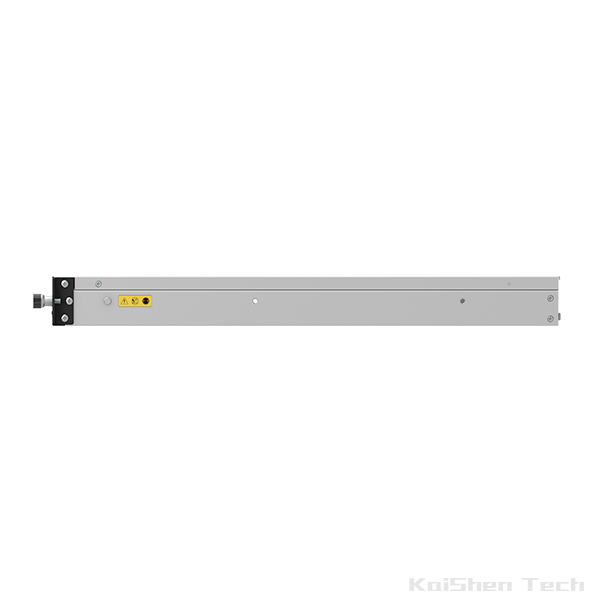

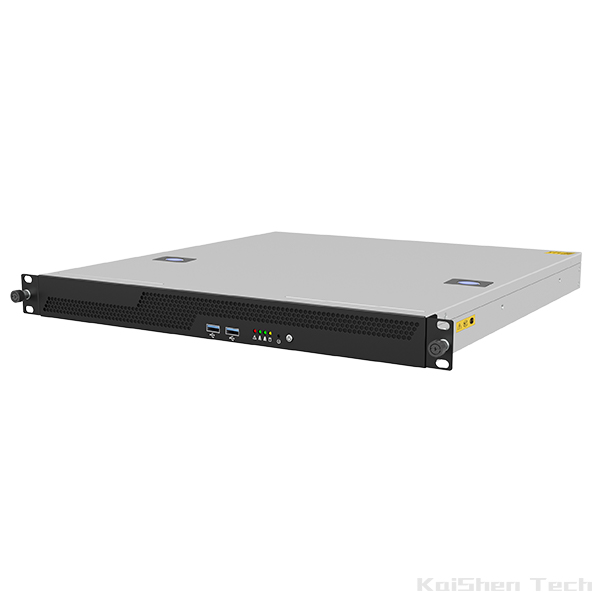

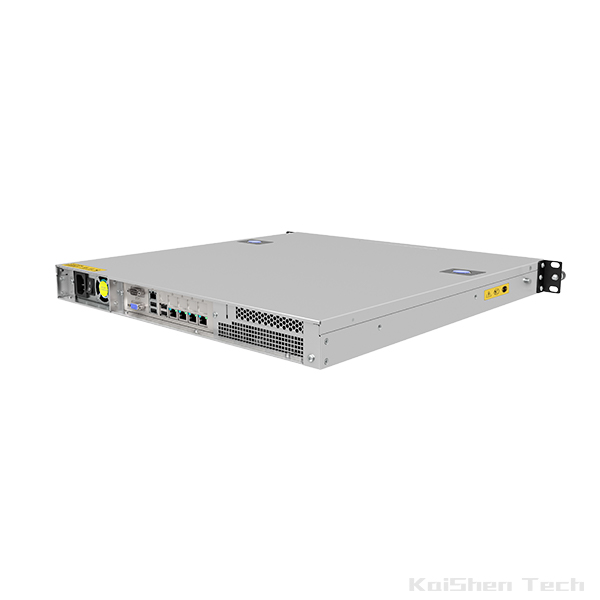

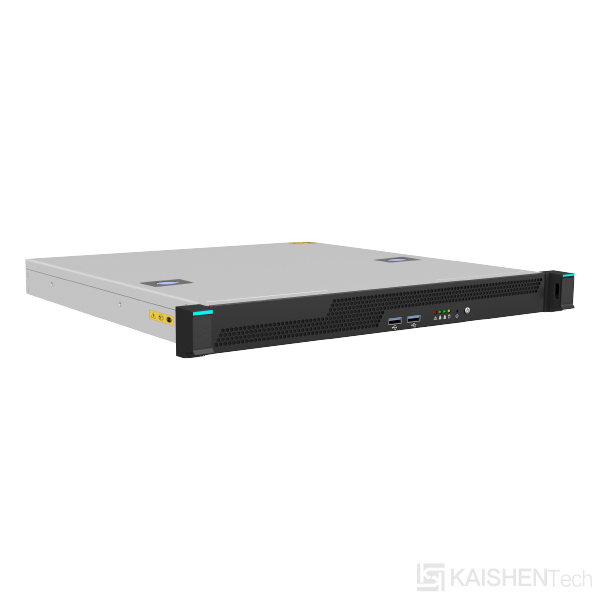

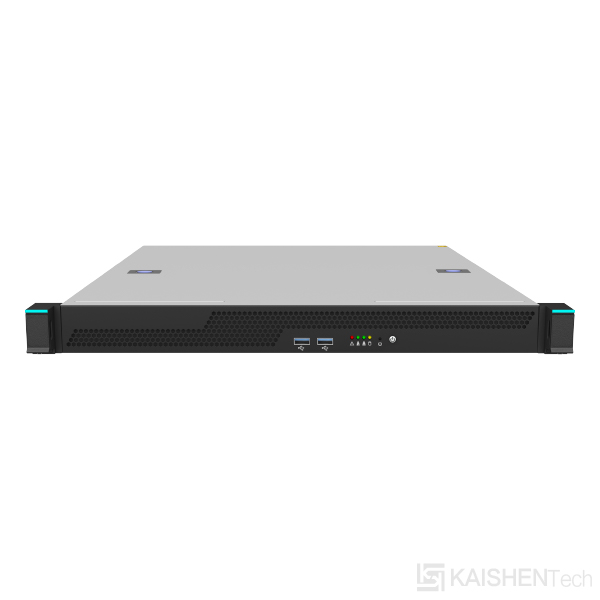

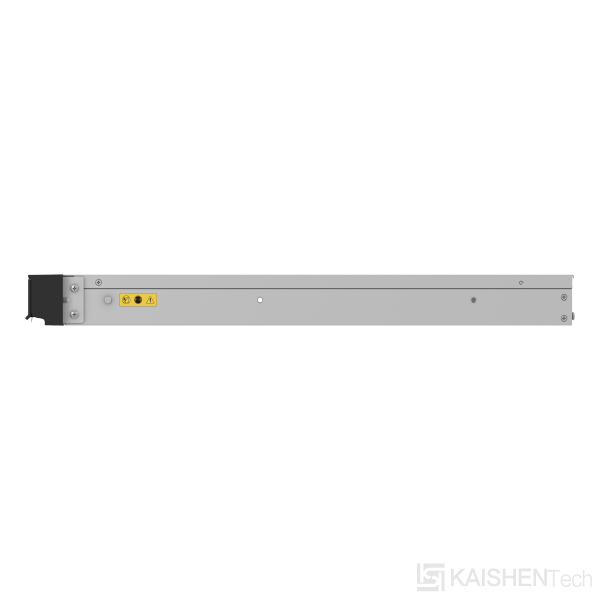

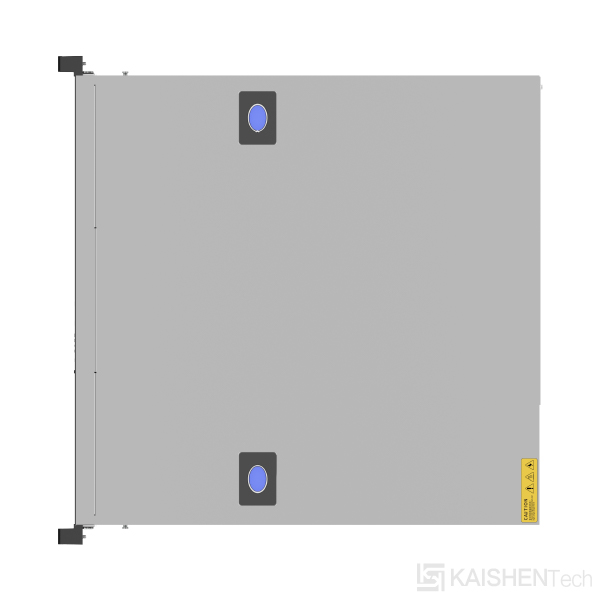

1U No Bay Server Chassis

1U rack server chassis

Depth: 450mm

The motherboard supports (12”x9.6”) and below specifications

Supports 1U standard power supply and 1+1 redundant power supply

Capable for cache servers, ERP servers, streaming media servers, etc.

Customized Accepted

Download

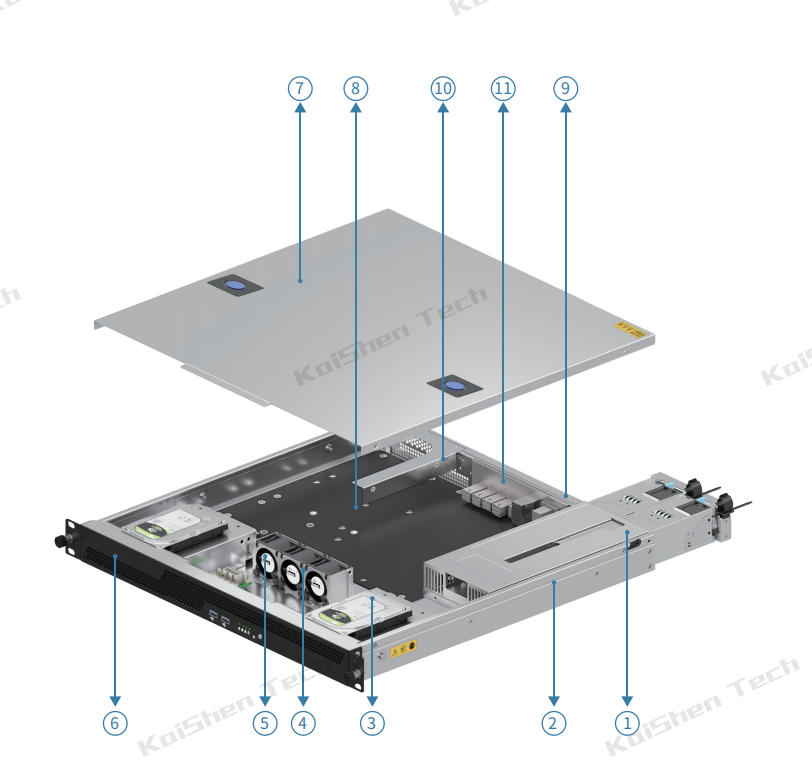

Technical Parameter Dimensional Structure Download

Product code	K11001	K11002
Chassis Category	1U Rack Mount
Material	1.2mm SGCC(taiwan)
MB Form Factor	ATX (12" x 9.6")

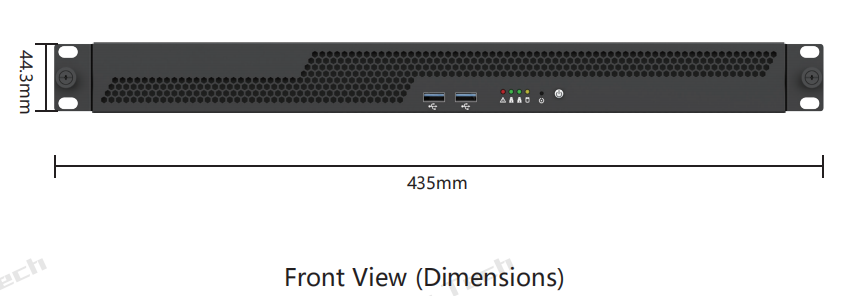

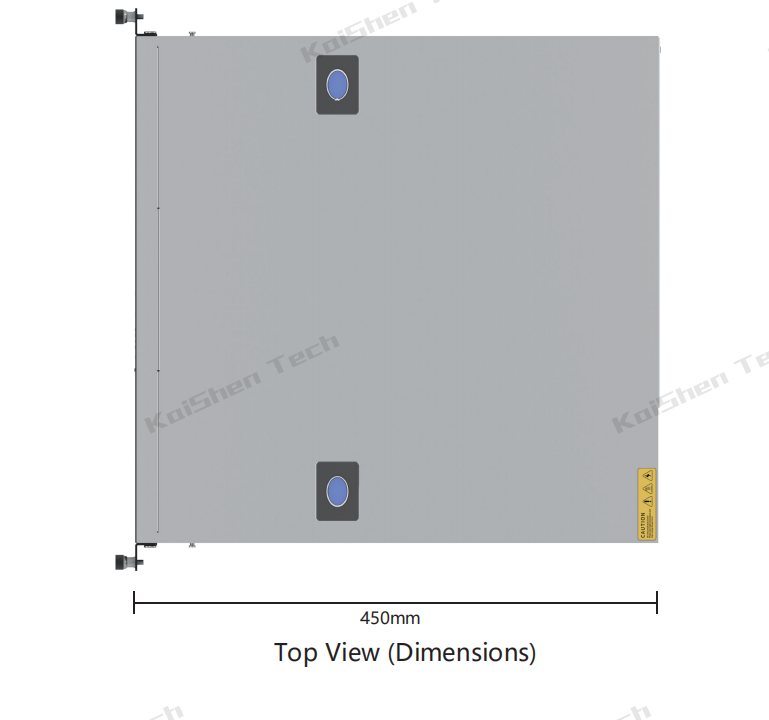

Dimensions(DWH)	450x435x44.3 (mm)
Drive Bays	Internal 3.5: 2; Internal 2.5: 2	Internal 3.5: 1; Internal 2.5: 1

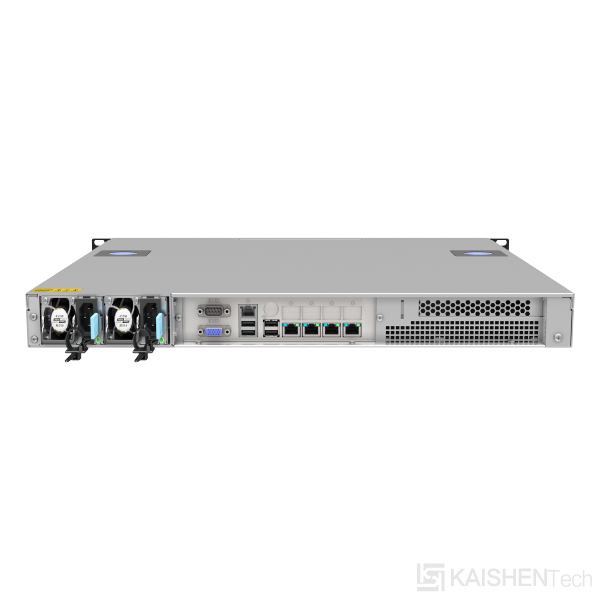

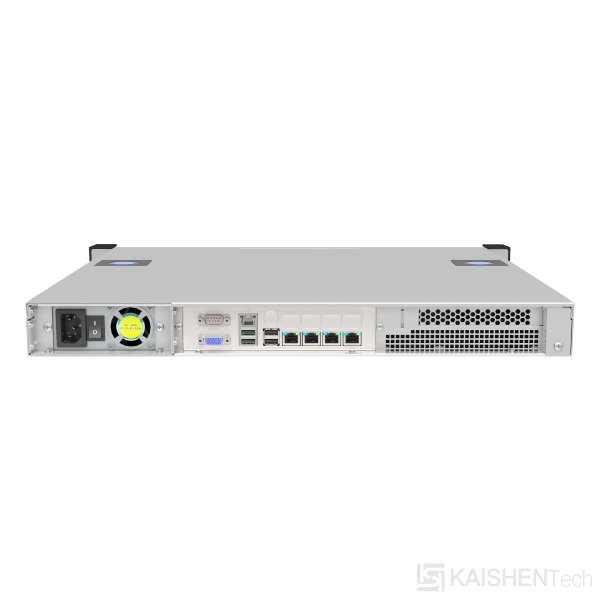

PSU Form Factor	1U Single Or 1+1 Redundant
Indicators	1 x Power Status, 1 x HDD Activity, 2 x LAN Activity,
Front Control	Power On/Off, System Reset,2 x USB 2.0
Cooling Fans	Middle: 3 x 4028
Expansion Slots	1 x Full Height PCIE 1 x16; OR 8X
HDD Backplane	NO
Rack Rails	P/N: 0304100005 (Option)
CD-ROM Drive	NO	1 * CD-ROM drive (Option)
Net Weight	5.2kg
Gross Weight	7.3kg
Package Size(DWH)	Single:720x605x160mm Double:735x620x185mm(optional
