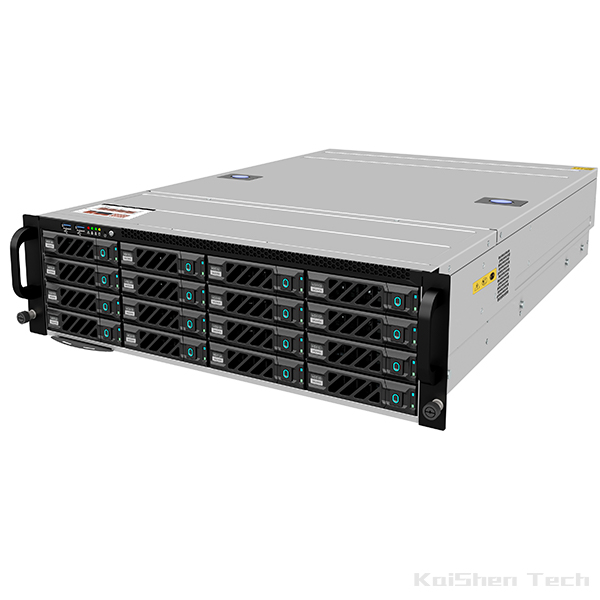

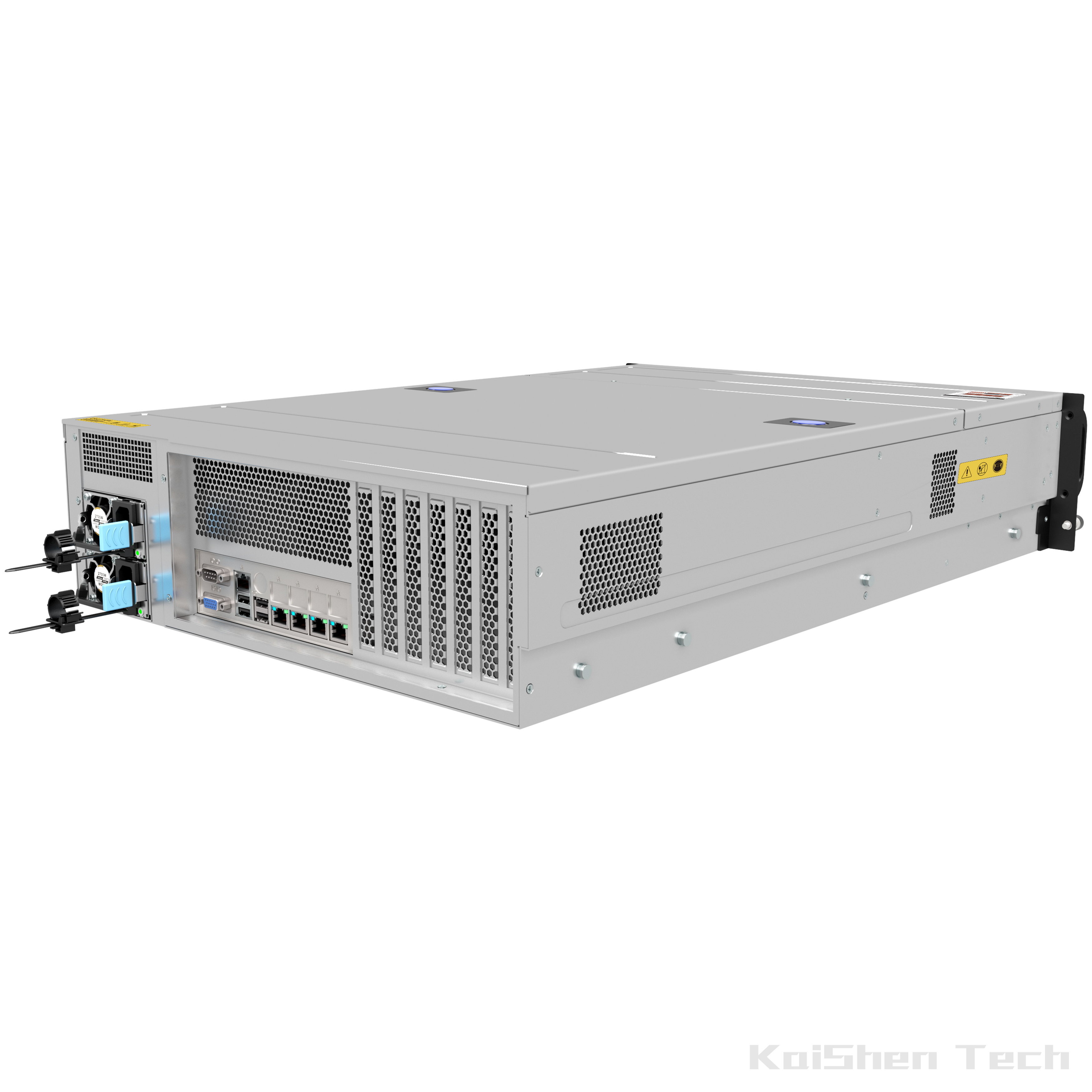

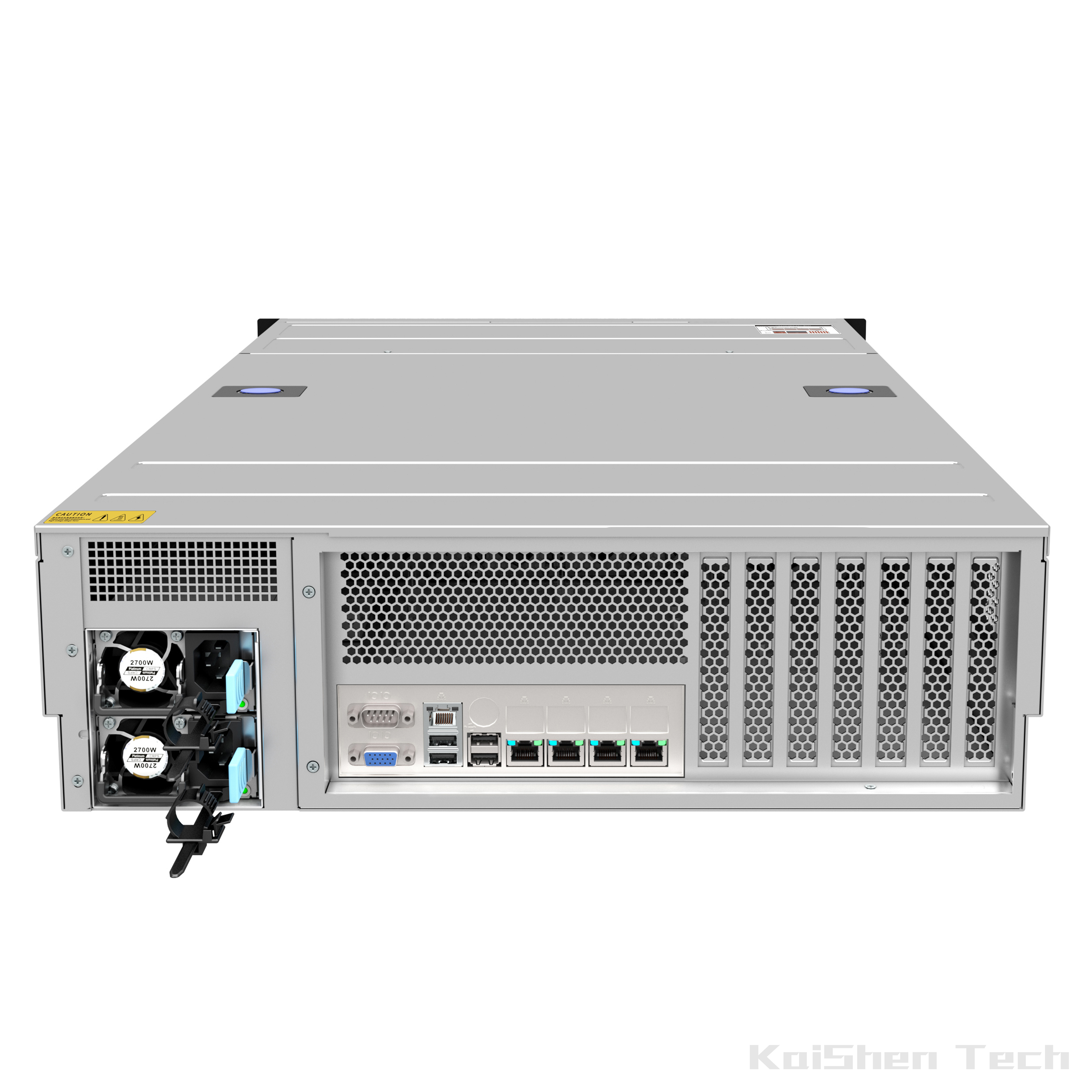

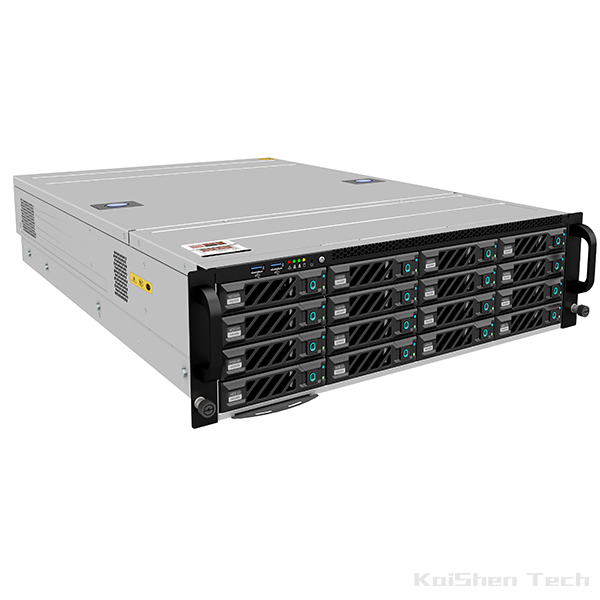

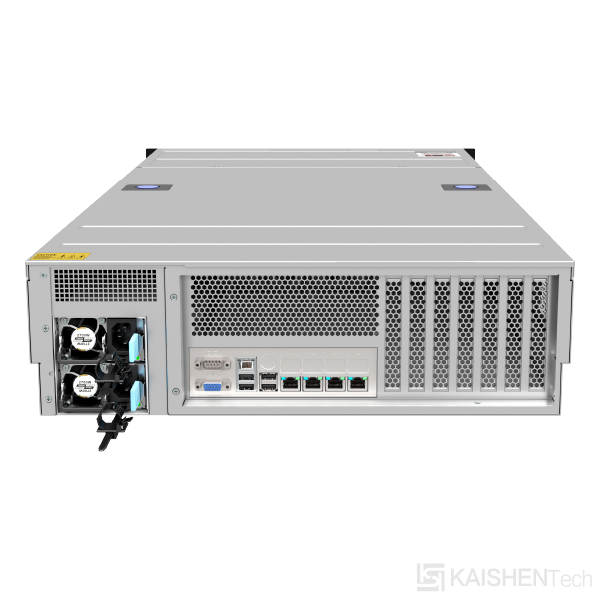

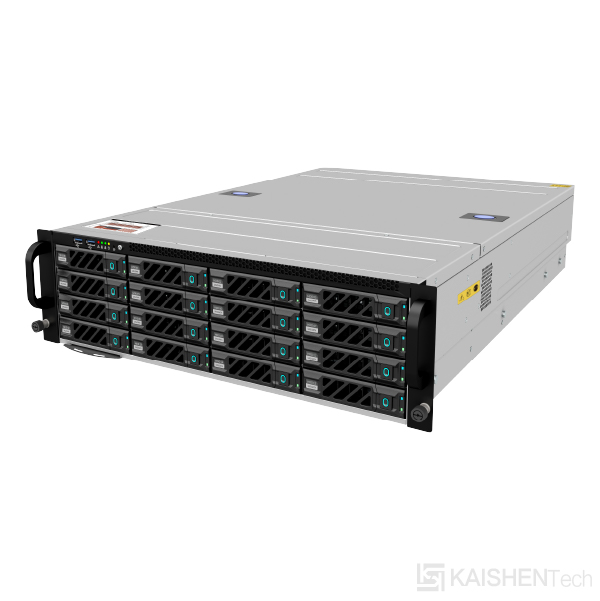

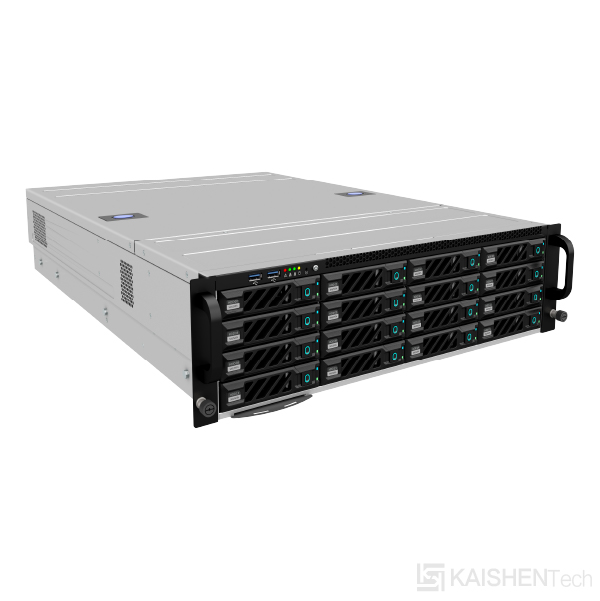

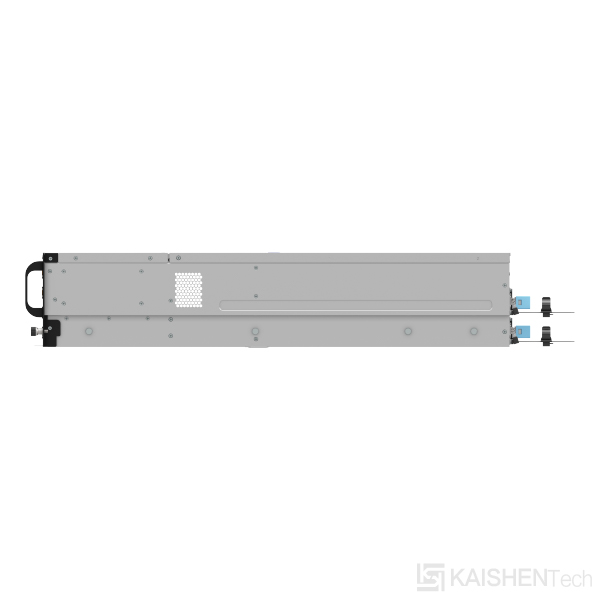

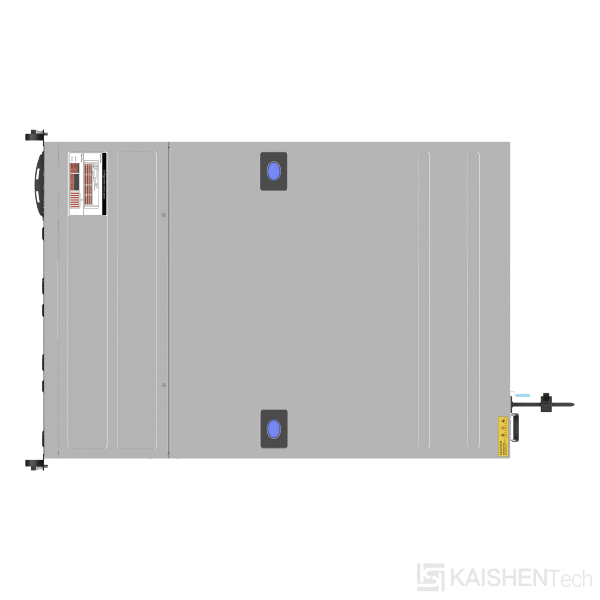

3u 16 Bays Server Chassis

3U rack server chassis

6GB/S directly connected transmission backplane

The motherboard supports (12”x13”) and below specifications

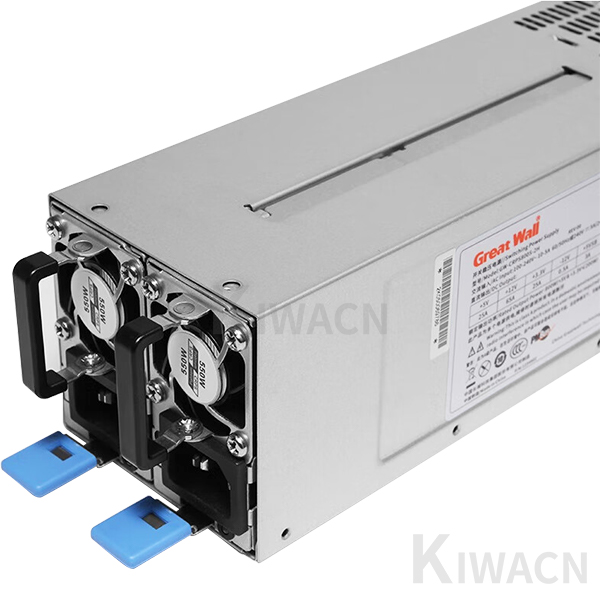

Supports 2U standard power supply and 1+1 redundant power supply/ATX

Capable for security storage, database and Big Data applications.

Customization accepted.

Download

Technical Parameter Dimensional Structure Download

Product code	K33001
Chassis Category	3U Rack Mount
Material	1.2mm SGCC(taiwan)
MB Form Factor	Extended ATX (12 "x 13")

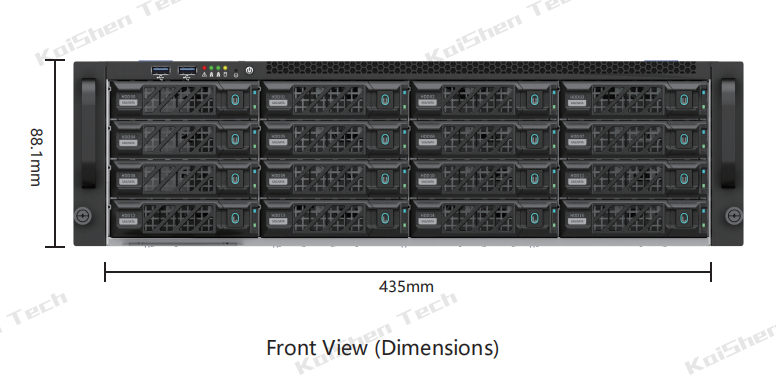

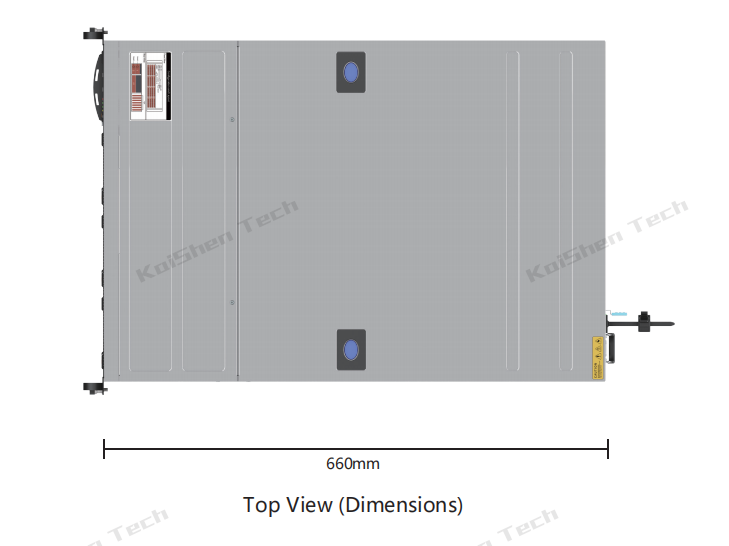

Dimensions(DWH)	660 * 435 * 132.3 (mm) 25.98 "x 17.12"; X 5.21 "
Drive Bays	3.5" Hot swap: 16, lnternal 2.5"a;: 2, 2.5" Hot swap (Option): 2

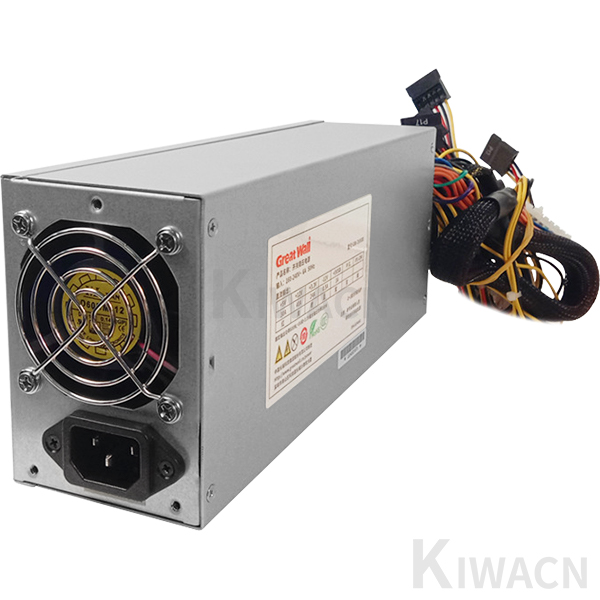

PSU Form Factor	2U Single or 1+1 Redundant
Indicators	1 * Power Status, 2 * LAN Activity, 1 * UID Status, 1 * HDD Status, 1 * Warning Status
Front Control	1 * Power On/0ff, 1 * System Reset, 1 * UID; 2 * USB 2.0, USB3.0+VGA (Option);
Safety Devices	Intrusion Switch (Option)
Cooling Fans	Middle: 3 x 12038mm (T=38mm), PWM, 6500RPM
Expansion Slots	7 PCIE
Riser Card Moudle	Option
HDD Backplane	16-port 6Gb/s - SAS

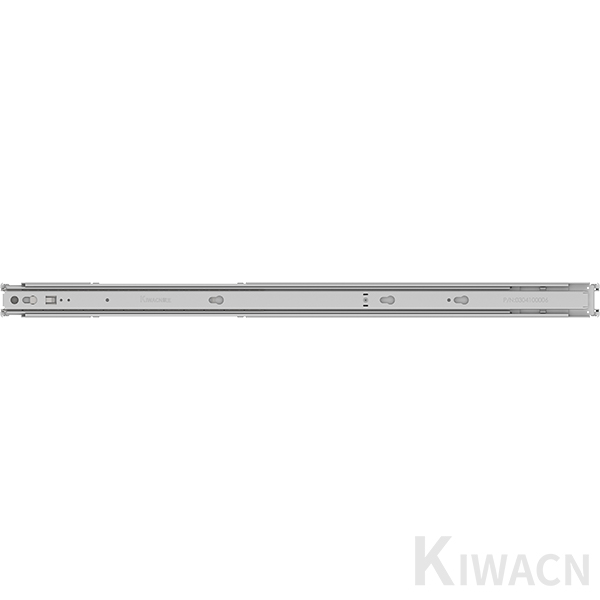

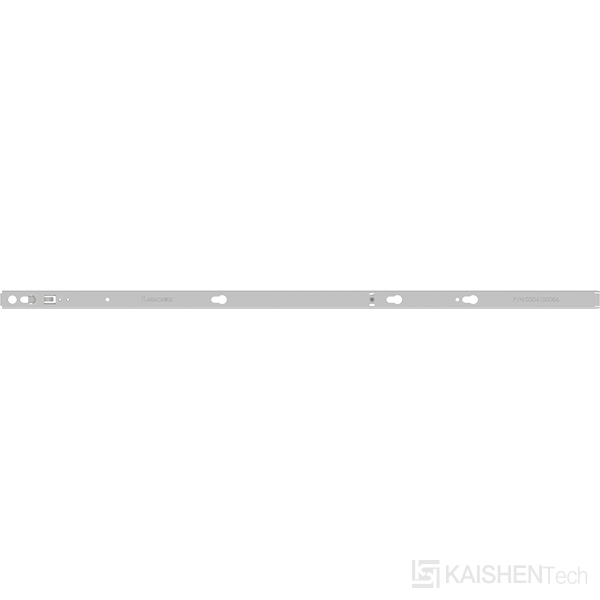

Rack Rails	P/N: 0304100006 (Option)
Net Weight	15.2kg
Gross Weight	16.2kg
Package Size(DWH)	830x600x230mm
