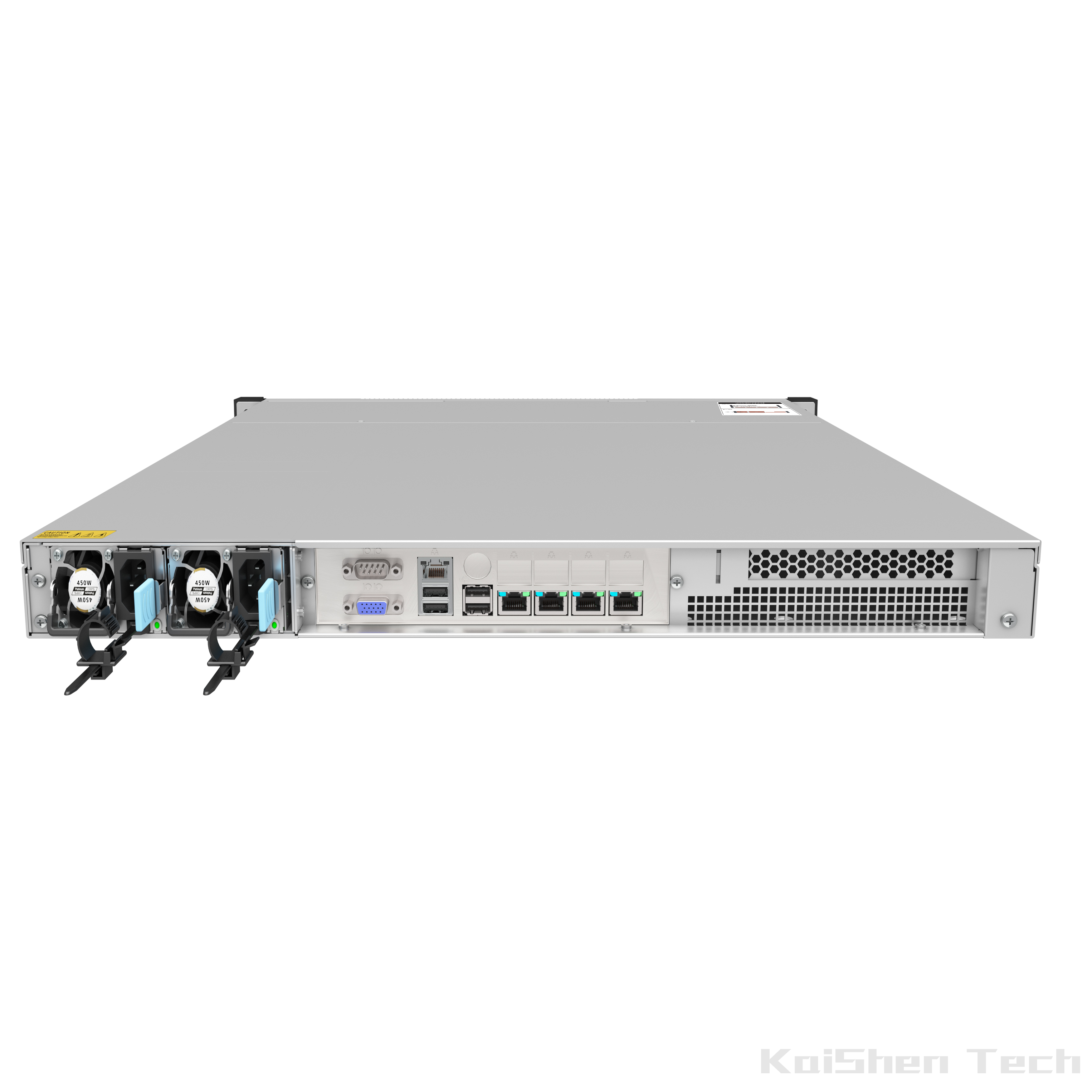

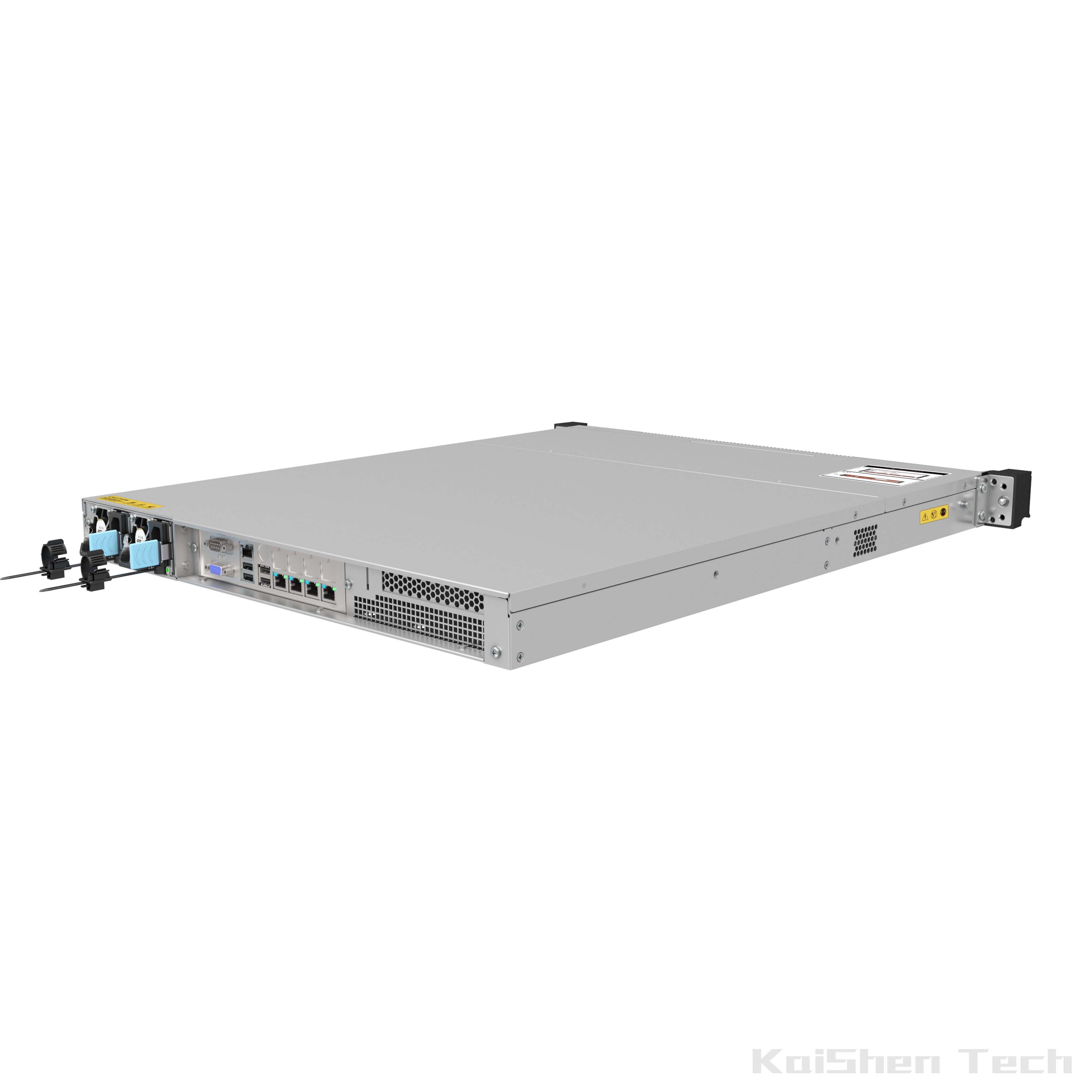

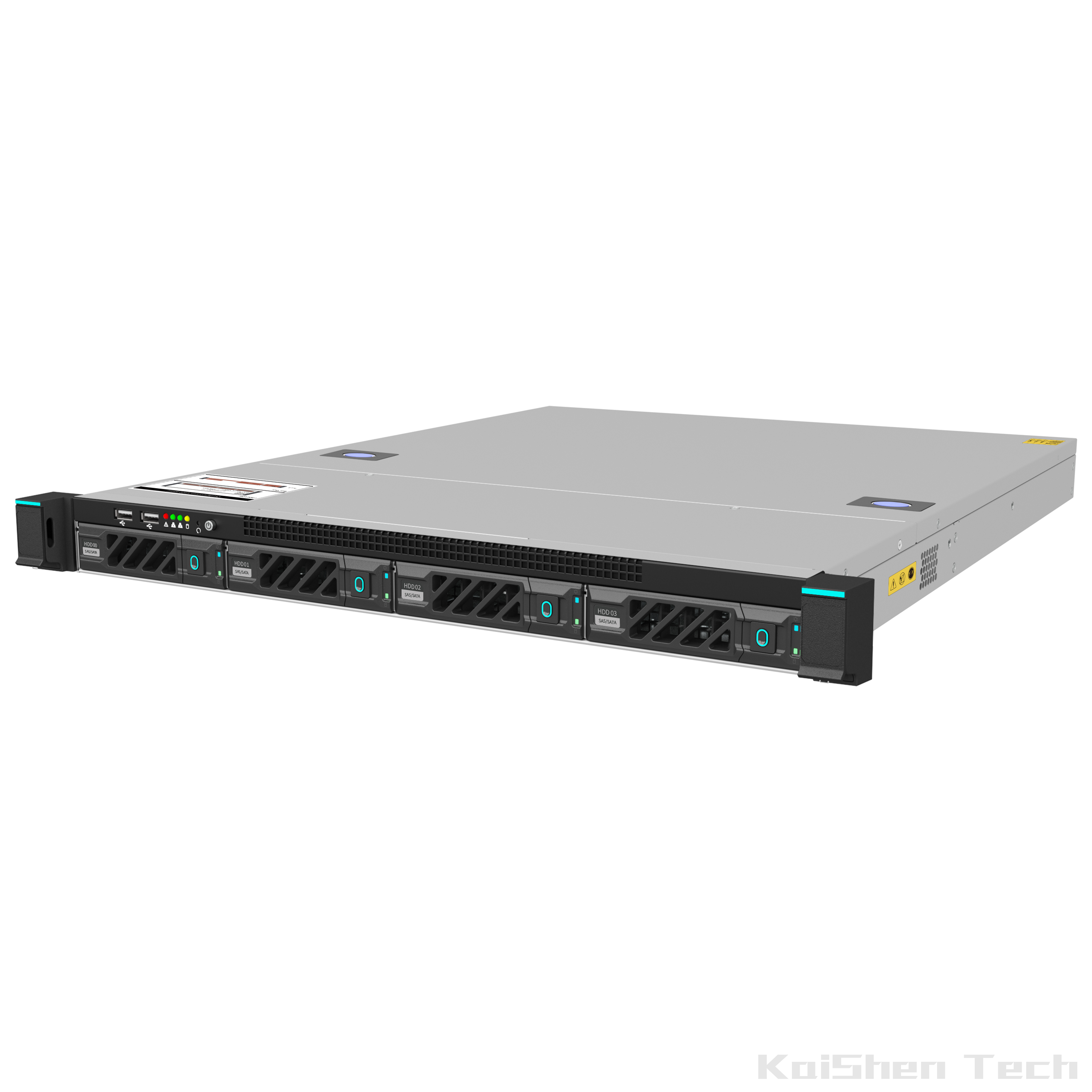

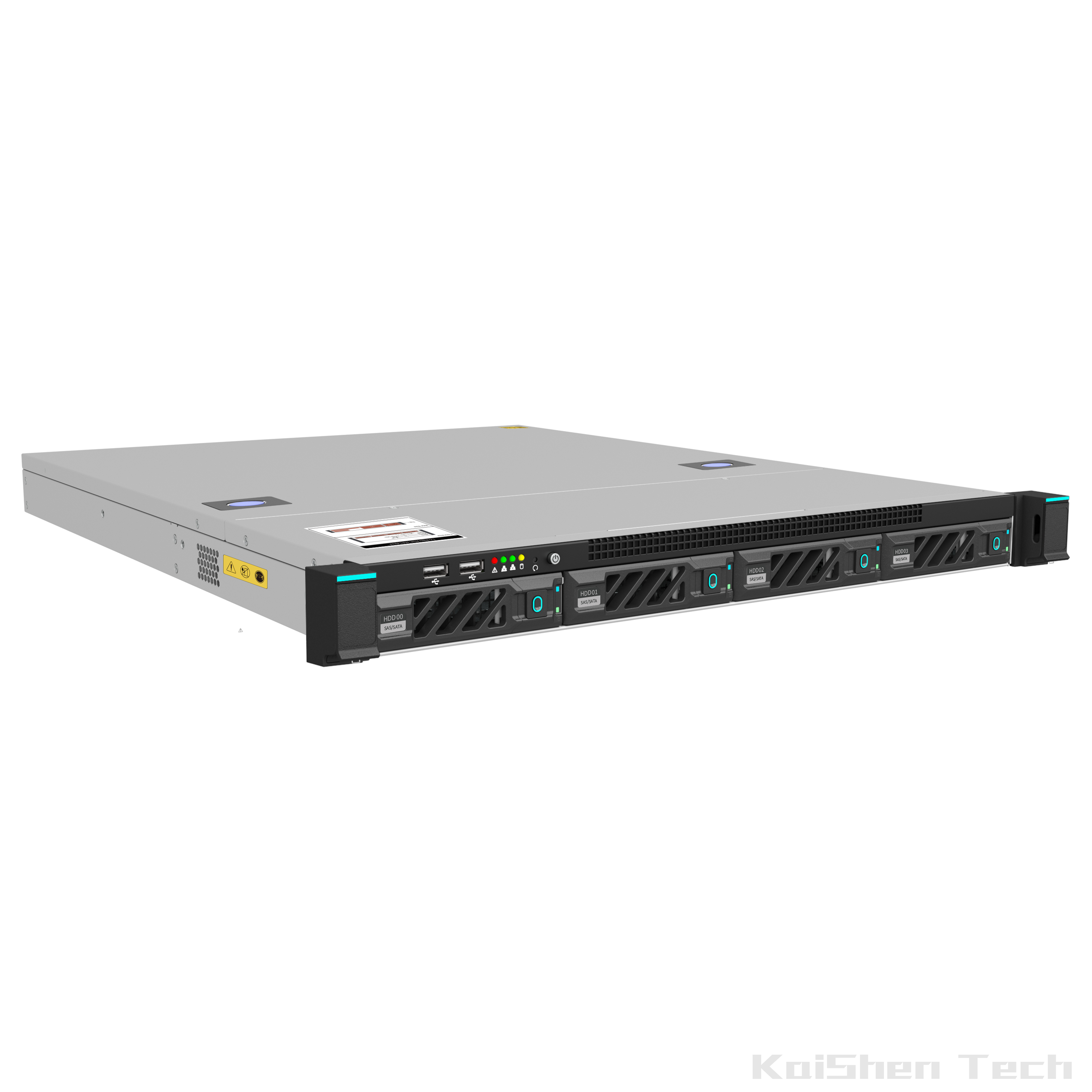

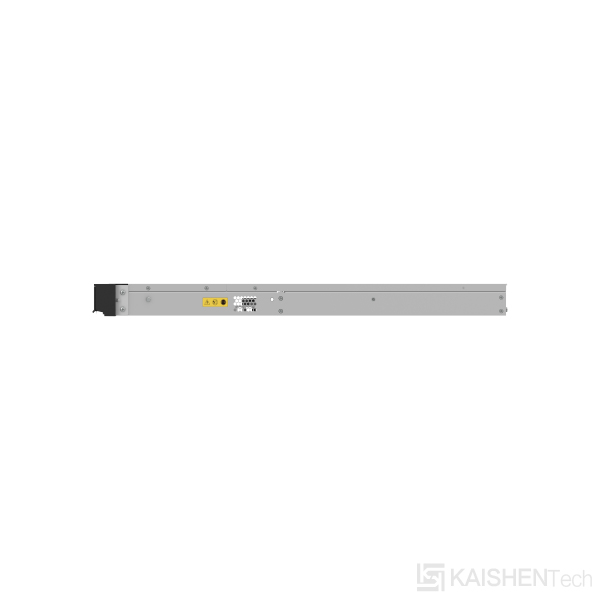

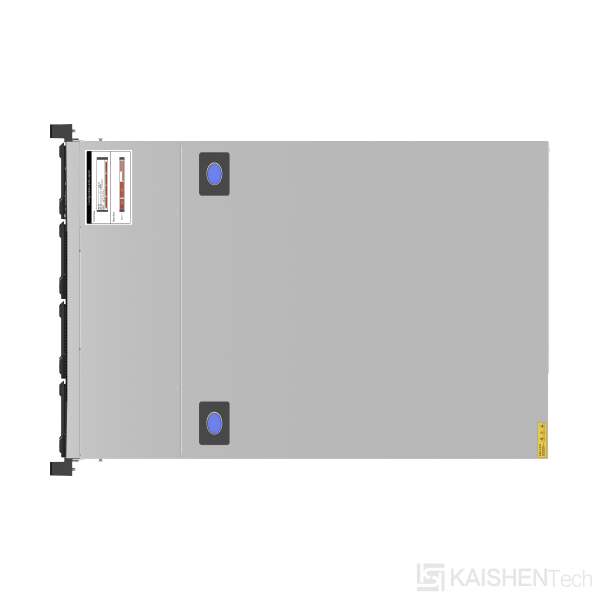

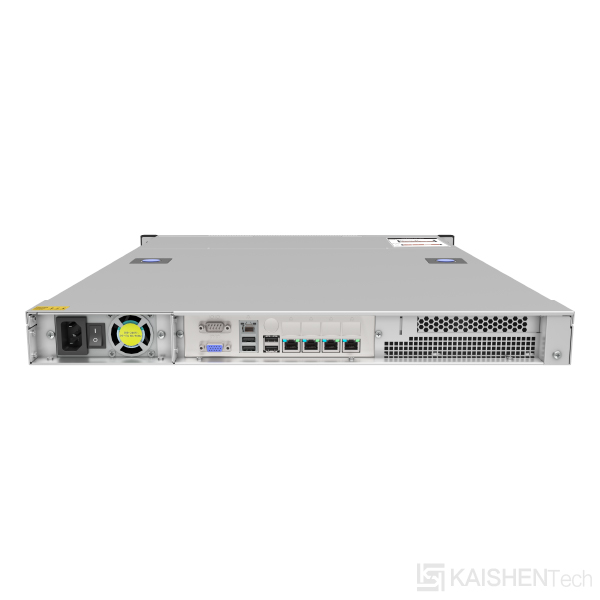

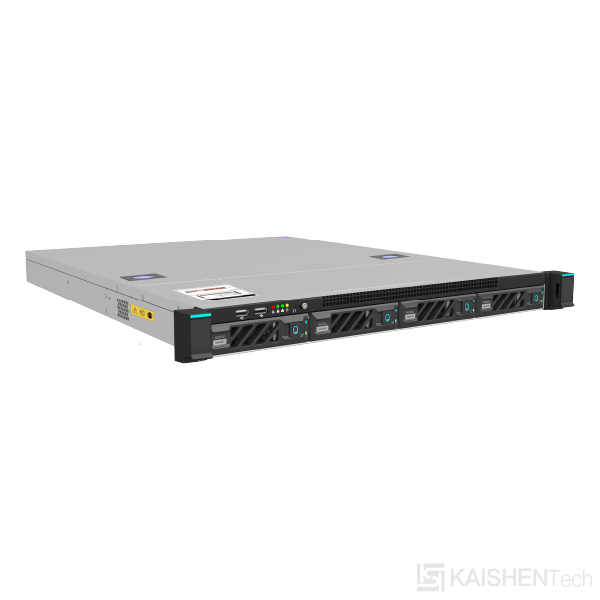

1u Industrial Control Server Chassis case

Product code	K31004	K31007
Chassis Category	1U Rack Mount
Material	1.2mm SGCC(taiwan)
MB Form Factor	ATX (12 x 9.6)	Extended ATX (12 "x 13")

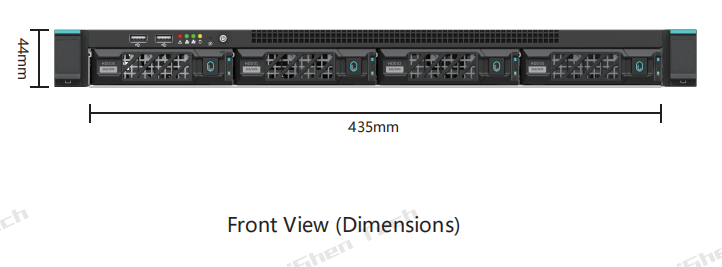

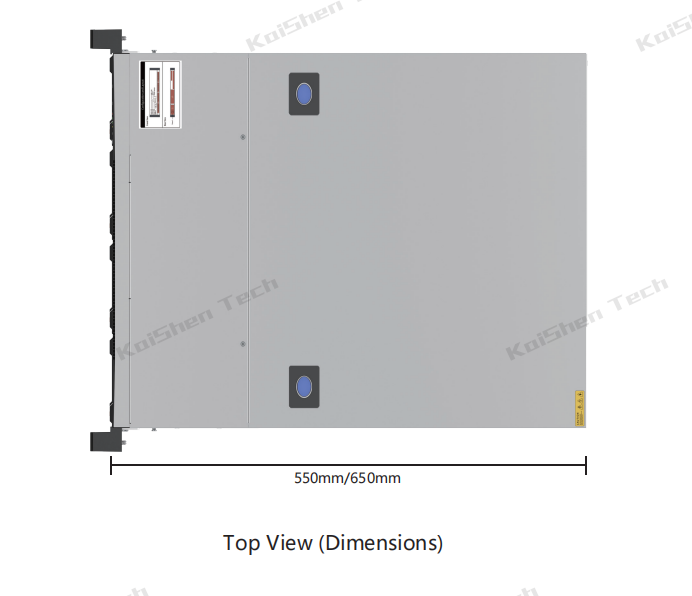

Dimensions(D * W * H)	550x435x44 (mm);	650x435x44 (mm);
Drive Bays	3.5" Hot swap: 4, lnternal 2.5"a;: two

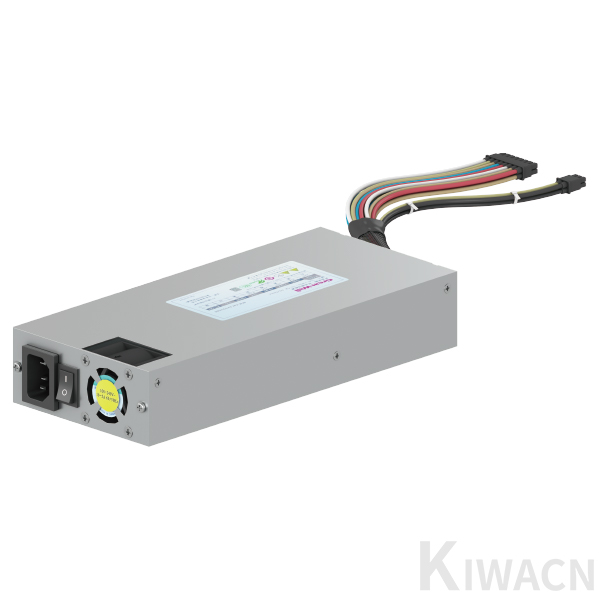

PSU Form Factor	1U Single; Or; 1+1 Redundant
Indicators	1 x Power Status, 1 x HDD Activity, 2 x LAN Activity,
Front Control	Power On/Off, System Reset, 2 x USB 2.0
Cooling Fans	Middle: 4 x 4028& Rear inside: 2 x 4028 (Option)
Riser Card Moudle	1 x Full Height PCIE 1 x16(option) 1 x Full Height PCIE 1x 8X(option)
HDD Backplane	4-port 12Gb/s - SAS, 4-port 6Gb/s - SAS (Option), three model (nvme/u.2/12gb/s) backplane(Option)

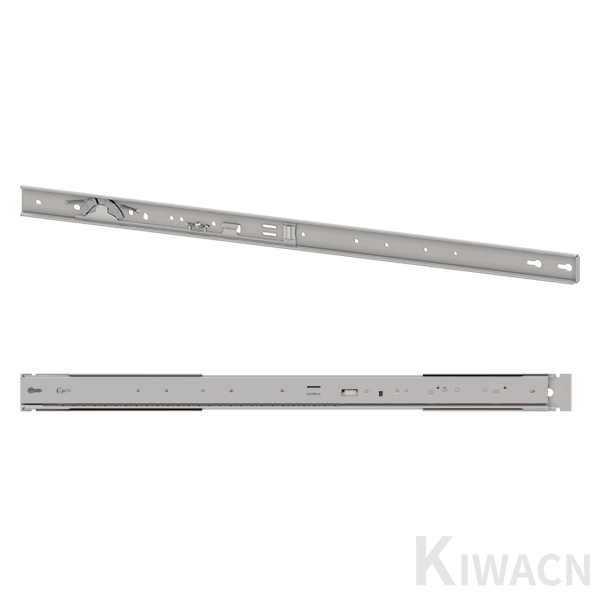

Rack Rail	P/N: 0304100005 (Option)
Net Weight	6.8kg	7.5kg
Gross Weight	9.1kg
Packaging Size(DWH)	Single:720x605x160mm Double:735x620x185mm(optional	Single:820x605x160mm Double:835x620x185mm(optional)
